RQB45-M M32 x 1.5 mm Metric FLEXAquick 45 degree Bend Elbow Connector for 34.5 mm OD conduit
5100.034.232

Description

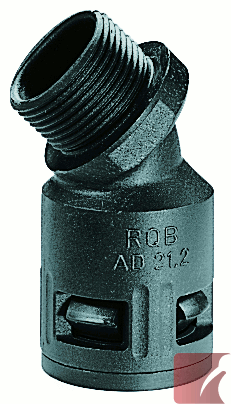

M32 x 1.5 mm FLEXAquick® smooth bore 45° elbow connector for 34.5 mm OD corrugated plastic conduit, outer thread

Features the innovative built-in FLEXAquick® release clip system for easy connector Quick "on" assembly, Quick "off" disassembly

NO tools required! Makes doing a secure, reliable conduit fitting installation, simple, easy, and very quick.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations

Need a different size?:  Browse other RQB45-M Metric threaded 45° elbow conduit fittings

Material:

  • plastic PA 6 polyamide nylon body, VO acc. to UL94
  • internal seal: TPE rubber

Properties:

  • IP 68 / IP 69K sealing level
  • Temperature range: -40ºC to +120ºC
  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Quick Link to our: Short Form FLEXAquick® Catalogue

Specifications

Connector Thread:
M32 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.038 kg
Package quantity:
10

Dimensions:
φ I:
23.00
φ B:
44.00
C:
14.00
D:
73.50
Conduit OD:
34.5 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5100-034-232 | 5100034232 | 5100 034 232 | 5100_034_232 | 5100/034/232 | 5100,034,232 | 5100+034+232
