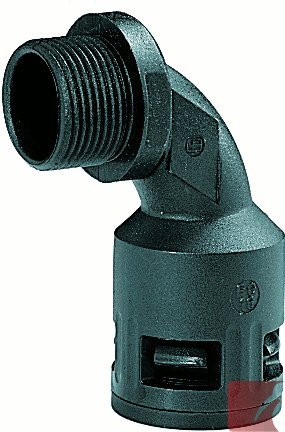

RQB90-M M20 x 1.5 mm Metric FLEXAquick 90 degree Bend Elbow Connector for 15.8 mm OD conduit
5103.015.220

Description


M20 x 1.5 mm FLEXAquick® 90° bend elbow connector for 15.8 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Use with all ROHRflex® corrugated plastic conduits

Innovative feature:

  • Smooth bore, with gentle 90° bend, elbow conduit fitting
  • Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Connector Thread:
M20 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.0144 kg
Package quantity:
50

Dimensions:
φ I:
10.00
φ B:
23.00
C:
12.00
D:
45.00
Conduit OD:
15.8 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5103-015-220 | 5103015220 | 5103 015 220 | 5103_015_220 | 5103/015/220 | 5103,015,220 | 5103+015+220
