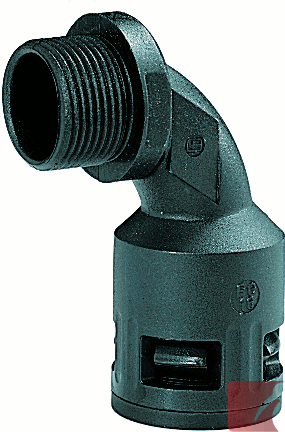

RQB90-M M50 x 1.5 mm Metric FLEXAquick 90 degree Bend Elbow Connector for 42.5 mm OD conduit
5103.042.250
Description
M50 x 1.5 mm FLEXAquick® 90° bend elbow connector for 42.5 mm OD conduit, outer thread
IP 68 / IP 69K sealing level
-40ºC to +120ºC
Innovative feature:
- Smooth bore, with gentle 90° bend, elbow conduit fitting
- Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!
Material:
- plastic PA 6 polyamide
- VO acc. to UL94
Properties:
- resistant to oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Use with all ROHRflex® corrugated conduits
Quick Links to other Products:
Specifications
Connector Thread:
M50 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.091 kg
Package quantity:
10
Dimensions:
φ I:
36.00
φ B:
52.00
C:
17.00
D:
82.50
Conduit OD:
42.5 mm
Certifications
CSA 22.2
# 227.3-05
UL 1696
#E86359
E162 & 662
SMP800C
45545-2
HL2 Rated
NFF 16-
101/102 I3
Alternate SKU Numbers
5103-042-250 | 5103042250 | 5103 042 250 | 5103_042_250 | 5103/042/250 | 5103,042,250 | 5103+042+250
