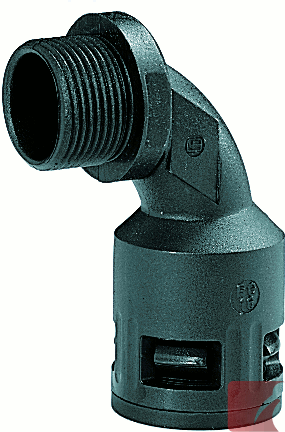

RQB90-M M50 x 1.5 mm Metric FLEXAquick 90 degree Bend Elbow Connector for 54.5 mm OD conduit
5103.054.250

Description


M50 x 1.5 mm FLEXAquick® 90° bend elbow connector for 54.5 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Innovative feature:

  • Smooth bore, with gentle 90° bend, elbow conduit fitting
  • Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Use with all ROHRflex® corrugated conduits

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Connector Thread:
M50 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.11 kg
Package quantity:
5

Dimensions:
φ I:
35.50
φ B:
64.00
C:
17.00
D:
98.00
Conduit OD:
54.5 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5103-054-250 | 5103054250 | 5103 054 250 | 5103_054_250 | 5103/054/250 | 5103,054,250 | 5103+054+250
