US-M M20 x 1.5 Straight Metal Fitting for AIRflex®-KUW-EDU, SPR-PVC-EDU, SPR-HI-EDU conduits
5011.335.020

Description


M20 x 1.5 mm FLEXA straight connector for 21.0 mm OD conduit, outer thread, made of nickel plated brass

IP 54 sealing level

-40ºC to +125ºC

Use with the following Flexa conduits:

  • AIRflex®-KUW-EDU
  • SPR-PVC-EDU-AS, SPR-HI-EDU

Construction:

  • Body and compression nut: nickel plated brass
  • Sealing ring: TPE or PTFE
  • Thrust collar: brass
  • Ferrule: brass or plastic
  • Outer "O" sealing ring: NBR perbunan rubber and comes pre-mounted with the fitting

Properties:

  • watertight and dustproof
  • highly secure compression style mounting of connector to the conduit
  • grounding / bonding supported
  • good vibration and tension tolerance

Specifications

Connector Thread:
M20 x 1.5 mm
Sealing Level:
IP 54
Colour:
Silver
Weight:
0.0042 kg
Package quantity:
50

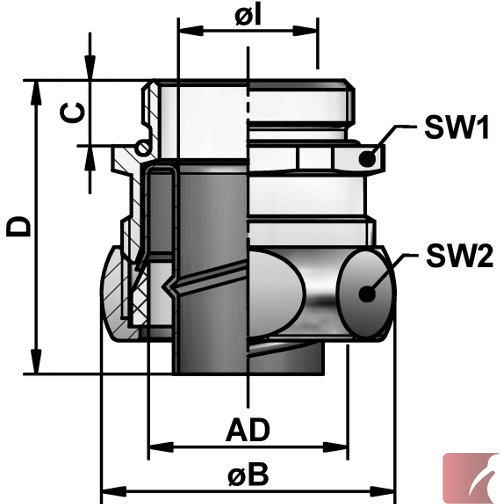

Dimensions:
φ I:
14.50
φ B:
31.00
C:
10.00
D:
33.00
Conduit OD:
21.0 mm
