US-M M25 x 1.5 Straight Metal Fitting for AIRflex®-KUW-EDU conduits
5011.335.025

Description


M25 x 1.5 mm FLEXA straight connector for 27.0 mm OD conduit, outer thread, made of nickel plated brass

IP 54 sealing level

-40ºC to +125ºC

Use with the following Flexa conduits:

  • AIRflex®-KUW-EDU

Construction:

  • Body and compression nut: nickel plated brass
  • Sealing ring: TPE or PTFE
  • Thrust collar: brass
  • Ferrule: brass or plastic
  • Outer "O" sealing ring: NBR perbunan rubber and comes pre-mounted with the fitting

Properties:

  • watertight and dustproof
  • highly secure compression style mounting of connector to the conduit
  • grounding / bonding supported
  • good vibration and tension tolerance

Specifications

Connector Thread:
M25 x 1.5 mm
Sealing Level:
IP 54
Colour:
Silver
Weight:
0.075 kg
Package quantity:
25

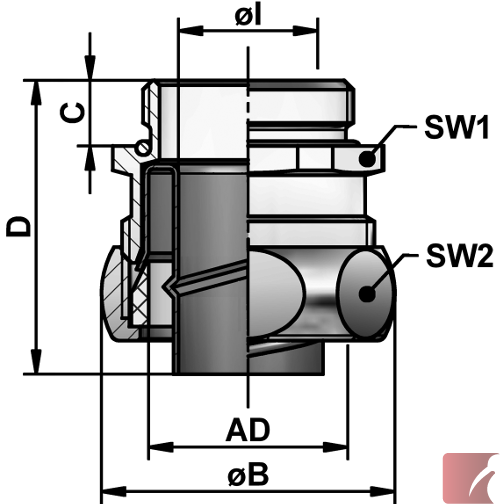

Dimensions:
φ I:
19.50
φ B:
39.00
C:
11.00
D:
41.00
Conduit OD:
27.0 mm
