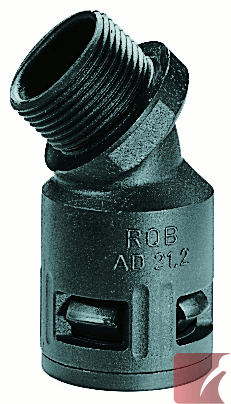

RQB45-N 1/2'' NPT FLEXAquick 45 degree Elbow Connector for 21.2 mm OD corrugated plastic conduit
5020.017.206

Description


1/2'' NPT FLEXAquick 45 degree Elbow Connector for 21.2 mm OD corrugated plastic conduit

Features the innovative FLEXAquick® built-in release clip system for easy connector Quick "on" assembly, and Quick "off" disassembly

NO tools required! Makes doing a secure, reliable conduit fitting installation simple.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine corrugation, "T" profile or coarse corrugation, "G" profile

Need a different size or thread type?:

Material:

  • body: plastic PA 6 polyamide nylon
  • internal seal: TPE
  • VO acc. to UL94

Properties:

  • IP 68 / IP 69K sealing level
  • Temperature range: -40ºC to +120ºC
  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Quick Link to our: Short Form FLEXAquick® Catalogue

Specifications

Connector Thread:
1/2" NPT
Sealing Level:
IP68
Colour:
Black
Weight:
0.017 kg
Package quantity:
50

Dimensions:
φ I:
13.00
φ B:
29.50
C:
12.00
D:
55.00
Conduit OD:
21.2 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-017-206 | 5020017206 | 5020 017 206 | 5020_017_206 | 5020/017/206 | 5020,017,206 | 5020+017+206
