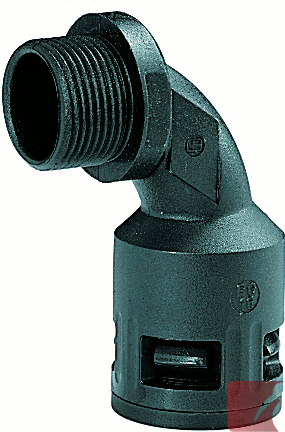

RQB90-N 1/2'' NPT FLEXAquick 90 degree Bend Elbow Connector for 21.2 mm OD conduit
5020.018.206

Description


1/2'' NPT FLEXAquick® 90° bend elbow connector for 21.2 mm OD conduit NW 17, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Innovative feature:

  • Smooth bore, with gentle 90° bend, elbow conduit fitting
  • Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Use with all ROHRflex® corrugated conduits

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Connector Thread:
1/2" NPT
Sealing Level:
IP68
Colour:
Black
Weight:
0.0217 kg
Package quantity:
50

Dimensions:
φ I:
13.00
φ B:
29.50
C:
12.00
D:
48.00
Conduit OD:
21.2 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-018-206 | 5020018206 | 5020 018 206 | 5020+018+206 | 5020/018/206 | 5020,018,206
