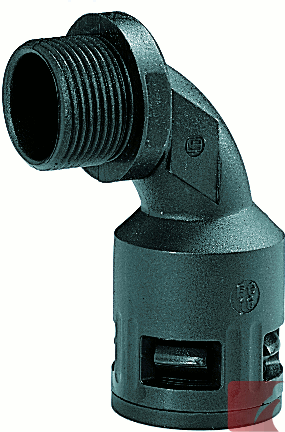

3/4'' NPT FLEXAquick® 90° Bend Elbow Connector for 28.5 mm OD conduit NW 23, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Innovative feature:

• Smooth bore, with gentle 90° bend, elbow conduit fitting
• Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

• plastic PA 6 polyamide
• VO acc. to UL94

Properties:

• resistant to oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen

Use with all ROHRflex® corrugated conduits

Quick Links to other Products:

• Browse other RQB90-N, NPT threaded 90° bend elbow fittings
• Browse RQG-N, NPT threaded straight fittings
• Browse RQG-M, Metric threaded straight fittings
• Browse RQB90-M Metric threaded 90° bend elbow fittings

Short Form FLEXAquick® NPT Catalogue
