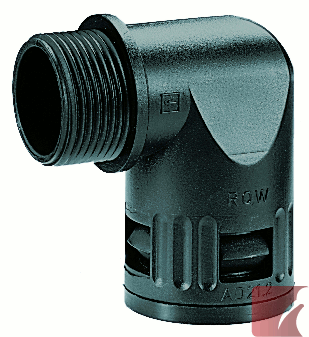

RQW-N 1/2" NPT FLEXAquick® 90° elbow connector for 21.2 mm OD corrugated plastic conduit NW 17, outer thread

Features the innovative FLEXAquick® built-in release clip system for easy connector Quick "on" assembly, and Quick "off" disassembly

NO tools required! Makes doing a secure, reliable conduit fitting installation simple.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine corrugation, "T" profile or coarse corrugation, "G" profile

Need a different size or thread type?:

• Browse other RQW-N, NPT threaded 90° elbow fittings
• Browse RQG-N, NPT threaded straight fittings
• Browse RQG-M, Metric threaded straight fittings
• Browse RQW-M Metric threaded 90° elbow fittings

Material:

• body: plastic PA 6 polyamide nylon
• internal seal: TPE
• VO acc. to UL94

Properties:

• IP 68 / IP 69K sealing level
• Temperature range: -40ºC to +120ºC
• resistant to oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen

Quick Link to our: Short Form FLEXAquick® Catalogue
