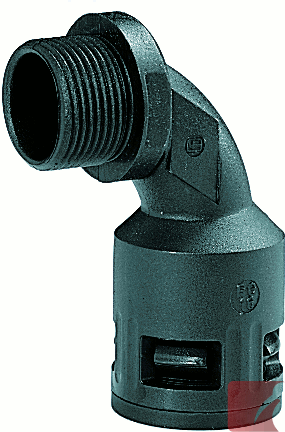

3/8'' NPT FLEXAquick® 90° Bend Elbow Connector for 13.0 mm OD conduit NW 10, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Innovative feature:

• Smooth bore, with gentle 90° bend, elbow conduit fitting
• Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

• plastic PA 6 polyamide
• VO acc. to UL94

Properties:

• resistant to oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen

Use with all ROHRflex® corrugated conduits
