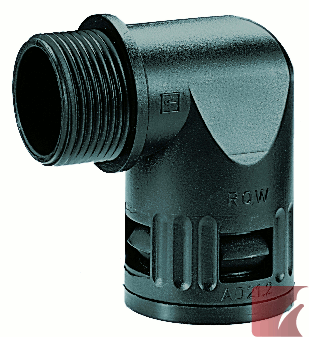

RQW-P PG 11 FLEXAquick 90 degree Elbow Connector for 15.8 mm OD corrugated conduit
5020.028.211

Description


PG 11 FLEXAquick® 90° elbow connector for 15.8 mm OD corrugated conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Use with all ROHRflex® corrugated plastic conduits.

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Connector Thread:
PG 11
Sealing Level:
IP68
Colour:
Black
Weight:
0.001 kg
Package quantity:
50

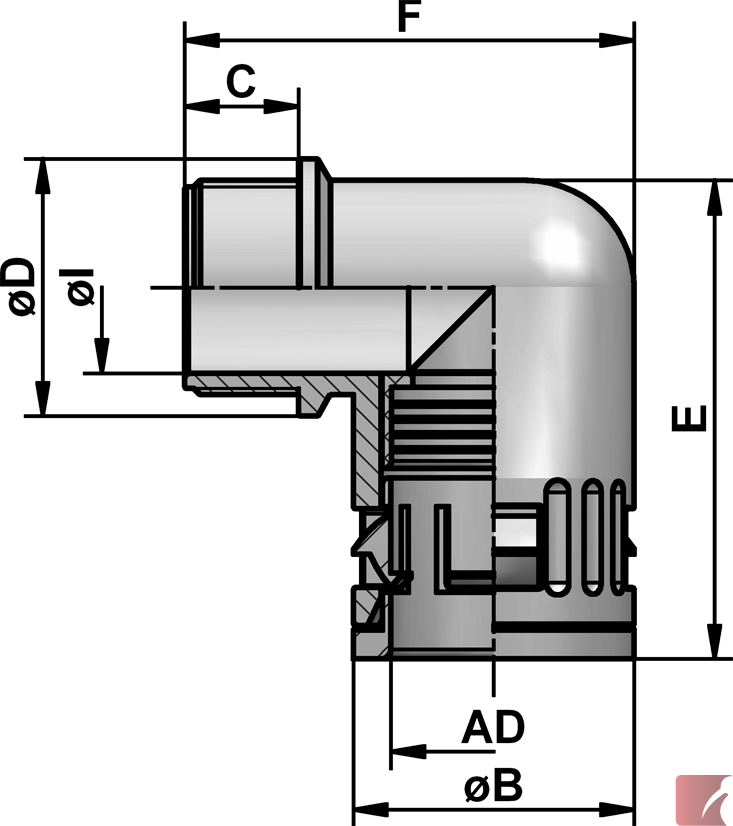

Dimensions:
φ I:
15.50
φ B:
23.00
C:
10.00
D:
37.50
Conduit OD:
15.8 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

969817-3 | 5020-028-211 | 5020028211 | 5020 028 211 | 5020_028_211 | 5020/028/211 | 5020,028,211 | 5020+028+211
