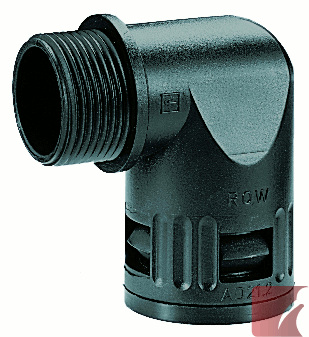

RQW-P PG 36 FLEXAquick 90 degree Elbow Connector for 42.5 mm OD corrugated conduit
5020.028.236
Description
PG 36 FLEXAquick® 90° elbow connector for 42.5 mm OD conduit, outer thread
IP 68 / IP 69K sealing level
-40ºC to +120ºC
Use with all ROHRflex® corrugated plastic conduits.
Innovative feature:
- Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!
Material:
- plastic PA 6 polyamide
- VO acc. to UL94
Properties:
- resistant to oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Quick Links to other Products:
Specifications
Connector Thread:
PG 36
Sealing Level:
IP68
Colour:
Black
Weight:
0.072 kg
Package quantity:
10
Dimensions:
φ I:
36.50
φ B:
52.00
C:
15.00
D:
72.00
Conduit OD:
42.5 mm
Certifications

CSA 22.2
# 227.3-05

UL 1696
#E86359

E162 & 662
SMP800C


45545-2
HL2 Rated

NFF 16-
101/102 I3



Alternate SKU Numbers
969817-7 | 5020-028-236 | 5020028236 | 5020 028 236 | 5020_028_236 | 5020/028/236 | 5020,028,236 | 5020+028+236
