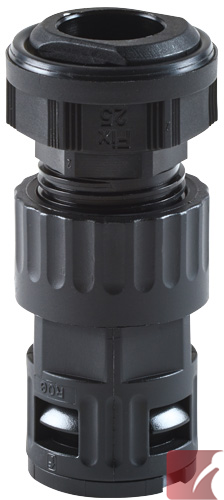

RQGZ-S 25 mm Threadless Quick Assembly FLEXAquick Strain Relief Connector for 21.2 mm OD conduit. No locknut needed.

Cable clamping range: 11.0 - 17.0 mm

Mounting hole: 25.2 mm

For wall thicknesses ranging 1.0 to 4.0 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Innovative feature:

• Unique fitting installs easily from one side of a control cabinet. No locknut needed, no help needed on the blind side of the cabinet. Mounts assistant free!
• The conduit end of the fitting features a Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

• plastic PA 6 polyamide, nylon
• VO acc. to UL94

Properties:

• resistant to oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• excellent for high mechanical stress
• impact-resistant

Use with ROHRflex® corrugated plastic conduits
