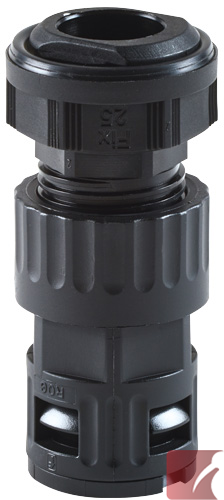

RQGZ-S 32 mm Threadless Quick Assembly FLEXAquick Strain Relief Connector for 28.5 mm OD conduit
5130.028.232

Description

RQGZ-S 32 mm Threadless Quick Assembly FLEXAquick Strain Relief Connector for 28.5 mm OD conduit. No locknut needed.

Cable clamping range: 15.0 - 21.0 mm

Mounting hole: 32.2 mm

For wall thicknesses ranging 1.0 to 4.0 mm

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Innovative feature:

  • Unique fitting installs easily from one side of a control cabinet. No locknut needed, no help needed on the blind side of the cabinet. Mounts assistant free!
  • The conduit end of the fitting features a Quick "on" assembly, Quick "off" disassembly via the unique FLEXAquick® built-in release clip system. NO tools required!

Material:

  • plastic PA 6 polyamide, nylon
  • VO acc. to UL94

Properties:

  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • excellent for high mechanical stress
  • impact-resistant

Use with ROHRflex® corrugated plastic conduits

Quick Links to other Products:

Short Form FLEXAquick® NPT Catalogue

Specifications

Connector Thread:
Threadless
Sealing Level:
IP68
Colour:
Black
Weight:
0.0595 kg
Package quantity:
10

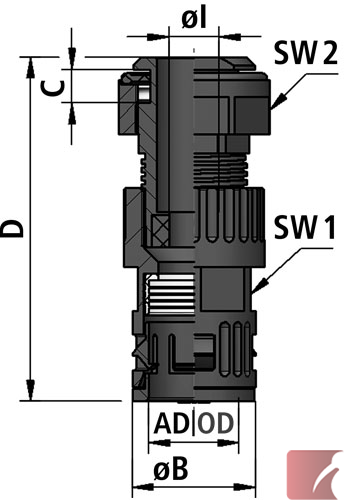

Dimensions:
φ I:
15.00
φ B:
46.00
C:
11.00
D:
90.00
Conduit OD:
28.5 mm

Certifications

E162 & 662
SMP800C

Alternate SKU Numbers

5130-028-232 | 5130028232 | 5130 028 232 | 5130+028+232 | 5130/028/232 | 5130,028,232
