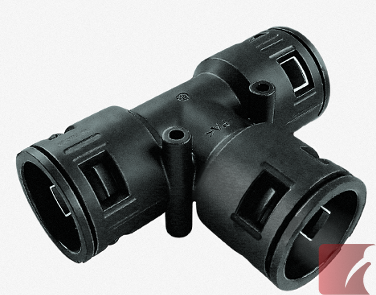

RQT-PA 3 x 28.5 mm FLEXAquick® Black Plastic Tee ''T'' fitting for corrugated conduits
5020.041.202

Description


3 x 28.5 mm OD FLEXAquick® Black Plastic Tee ''T'' fitting for corrugated plastic conduits and tubing

Connects quickly with three corrugated nylon plastic conduits of corresponding outside diameters (OD)

Features the unique FLEXAquick® built-in release clip system for easy connector Quick "on" assembly, and Quick "off" disassembly

NO tools required!

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine corrugation, "T" profile or coarse corrugation, "G" profile

Details:

  • 1 x 28.5 mm to 2 x 28.5 mm Tee "T" fitting distributor
  • 2 x 6.5 mm mounting holes

Need a different size or type of fitting?:

Material:

  • body: plastic PA 6 polyamide nylon
  • internal seal: TPE
  • VO acc. to UL94

Properties:

  • IP 68 / IP 69K sealing level
  • Temperature Range: -40ºC to +120ºC
  • resistant to oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Quick Link to our: Short Form FLEXAquick® Catalogue

Specifications

Color:
Black
Weight:
0.059 kg
Package Quantity:
10

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL3 for R22 / R 23
45545-2
HL3 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

5020-041-202 | 5020041202 | 5020 041 202 | 5020_041_202 | 5020/041/202 | 5020,041,202 | 5020+041+202
