RQG2-U 5/8'' - 24 UNEF Female Thread Backshell Connector for 15.8 mm OD conduit

Part#: 5020.047.204

Description

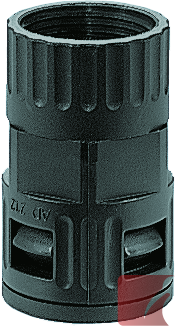

5/8"- 24 UNEF internal thread backshell FLEXAquick® straight connector for 15.8 mm OD conduit

Installs in seconds for Quick "on" assembly or Quick "off" disassembly.

NO tools required! Makes doing a secure, liquidtight conduit fitting installation, simple, easy, and very quick.

Transitions and connects MIL-DTL military style circular connectors with protective corrugated nylon conduits.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations.

Need a different size?: Browse other RQG2-U UNEF female threaded straight fittings

Material:

plastic PA 6 polyamide nylon body, VO acc. to UL94
internal seal: TPE rubber

Properties:

IP 68 / IP 69K sealing level
Temperature range: -40ºC to +120ºC
resistant oils and benzene
widely resistant to acids and solvents
free of silicone, cadmium, halogen

Quick Link to our: Short Form FLEXAquick® Catalogue

Quick Links to other Products:

Applications:

Use as a liquidtight back-shell fitting for AMP, Tyco, TE Connectivity, Amphenol, Burndy, ITT Cannon, Deutsch, Lemo and other circular military style connectors with UNEF threads. MIL-spec, DTL series, 97-5105 series

No heat shrink needed. A practical finishing touch to complex wire and cable harnessing protection.
