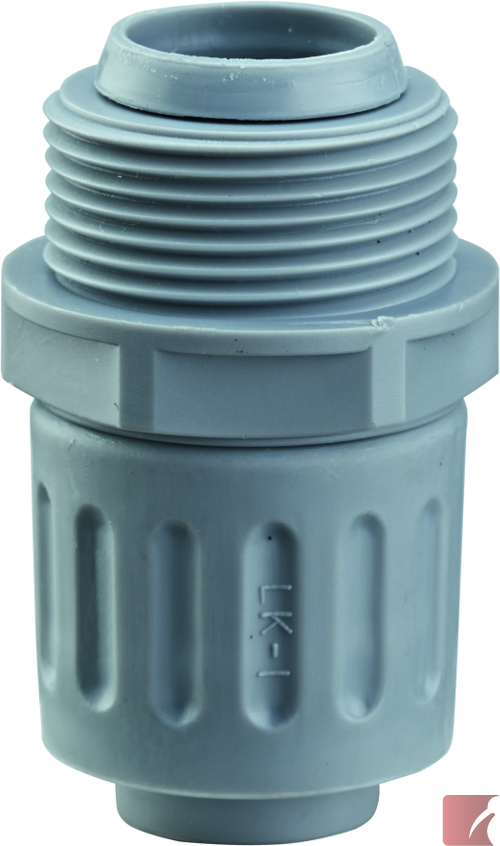

LKI-M M50 x 1.5 mm grey plastic swivelling body straight conduit connector for 45.0 mm OD AIRflex® conduits
5020.014.050

Description

LKI-M M50 x 1.5 mm grey plastic swivelling body straight conduit connector for 45.0 mm OD AIRflex® conduits, outer thread

Key Features & Benefit:

  • once installed, the threaded body of the conduit fitting "Swivels", allowing the mounted conduit end to rotate freely
  • NO CONDUIT KINKING! It's an ideal terminating solution for AIRflex® conduits in highly active applications like robotics,
  • and machine motion control

Approvals include CSA & UL.

Use with the following AIRflex® conduits:

  • AIRflex-KUW-PVC-AS, AIRflex-KUW-PU-AS, AIRflex-K, AIRflex-GRS

Need a different size or thread type?:

Construction

  • Connector body, fixed ferrule and compression nut are made of (PP) Polypropylene plastic
  • One piece, two component assembly with a special "twist on" integrated compression nut and ferrule design that locks firmly onto the conduit, while allowing the threaded part to "swivel"

Properties:

  • IP 54 sealing level

  • temperature rating: -10ºC to +110ºC

  • swivielling electrical conduit fitting

  • good dust protection

  • splash proof

  • good vibration tolerance

  • excellent tension strength

Available also in a smaller 2 piece pack size: Click here for part # 5020.714.016

Specifications

Connector Thread:
M50 x 1.5 mm
Sealing Level:
IP 54
Colour:
Grey
Weight:
0.0352 kg
Package quantity:
25

Dimensions:
φ I:
35.50
φ B:
59.50
C:
12.00
D:
62.50
Conduit OD:
45.0 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359

Alternate SKU Numbers

5020-014-050 | 5020014050 | 5020 014 050 | 5020_014_050 | 5020/014/050 | 5020,014,050 | 5020+014+050 | 55501460
