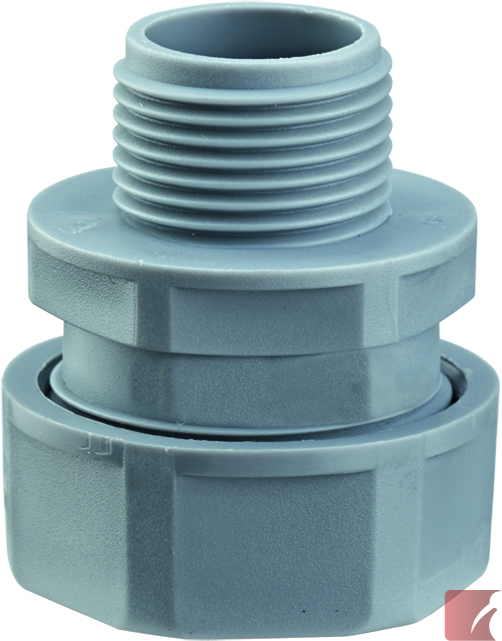

USK-M M50 x 1.5 mm grey plastic straight connector for 56.0 mm OD AIRflex® conduits, outer thread

This easy to install conduit fitting comes with an internal rubber sealing ring and twist-in ferrule.

Approvals include CSA & UL.

Use with the following AIRflex® conduits:

• AIRflex-KUW-PVC-AS, AIRflex-KUW-PU-AS, AIRflex-K, AIRflex-GRS

Need a different size or thread type?:

• Browse other USK-M, Metric threaded straight fittings
• Browse USK-P, PG threaded straight fittings

Material & Structure:

• Connector body, ferrule and compression nut are made of (PP) Polypropylene plastic
• Internal sealing ring: TPE rubber
• Compression fitting style design locks firmly onto the conduit

Properties:

• IP 54 sealing level

• temperature rating: -10ºC to +110ºC

• good dust protection
• splash proof
• good vibration tolerance
• excellent tension strength

Available also in a smaller 2 piece pack size: Click here for USK-M part # 5020.730.050
