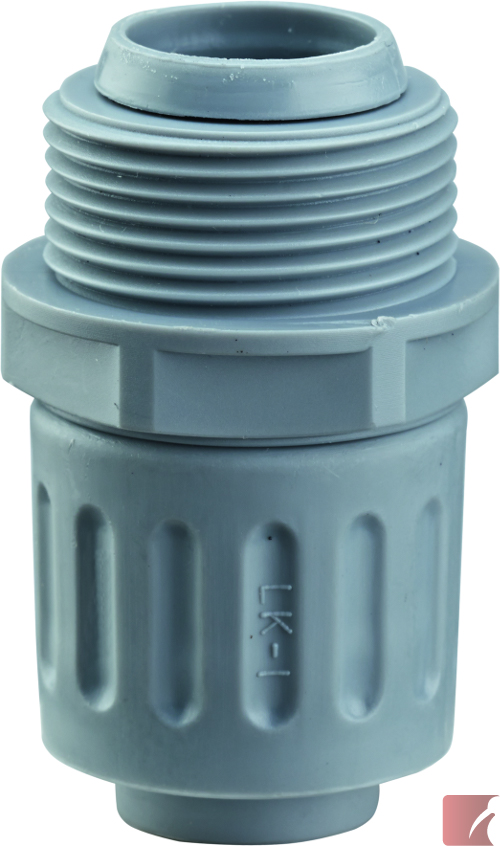

LKI-M M25 x 1.5 mm grey plastic swivelling body straight conduit connector for 21.0 mm OD AIRflex® conduits, small 10 piece pack

Key Features & Benefit:

• once installed, the threaded body of the conduit fitting "Swivels", allowing the mounted conduit end to rotate freely
• NO CONDUIT KINKING! It's an ideal terminating solution for AIRflex® conduits in highly active applications like robotics,
• and machine motion control

Approvals include CSA & UL.

Use with the following AIRflex® conduits:

• AIRflex-KUW-PVC-AS, AIRflex-KUW-PU-AS, AIRflex-K, AIRflex-GRS

Need a different size or thread type?:

• Browse other LKI-M, Metric threaded straight fittings
• Browse LKI-P, PG threaded straight fittings

Construction

• Connector body, fixed ferrule and compression nut are made of (PP) Polypropylene plastic
• One piece, two component assembly with a special "twist on" integrated compression nut and ferrule design that locks firmly onto the conduit, while allowing the threaded part to "swivel"

Properties:

• IP 54 sealing level

• temperature rating: -10ºC to +110ºC

• swivielling electrical conduit fitting

• good dust protection

• splash proof

• good vibration tolerance

• excellent tension strength

Available also in a larger 50 piece pack size: Click here for part # 5020.014.025
