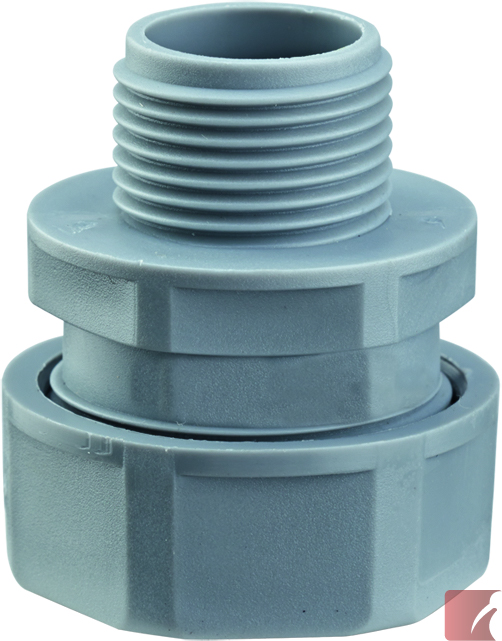

USK-M M10 x 1.0 mm plastic grey straight connector for 10.0 mm OD AIRflex® conduits small 10 piece pack
5020.730.010

Description

USK-M M10 x 1.0 mm plastic grey straight connector for 10.0 mm OD AIRflex® conduits, small 10 piece pack

This easy to install conduit fitting comes with an internal rubber sealing ring and twist-in ferrule.

Approvals include CSA & UL.

Use with the following AIRflex® conduits:

  • AIRflex-KUW-PVC-AS, AIRflex-KUW-PU-AS, AIRflex-K, AIRflex-GRS

Need a different size or thread type?:

Material & Structure:

  • Connector body, ferrule and compression nut are made of (PP) Polypropylene plastic
  • Internal sealing ring: TPE rubber
  • Compression fitting style design locks firmly onto the conduit

Properties:

  • IP 54 sealing level

  • temperature rating: -10ºC to +110ºC

  • good dust protection
  • splash proof
  • good vibration tolerance
  • excellent tension strength

Available also in a larger 50 piece pack size: Click here for USK-M part # 5020.330.010

Specifications

Connector Thread:
M10 x 1.0 mm
Sealing Level:
IP 54
Colour:
Grey
Weight:
0.0036 kg
Package quantity:
10

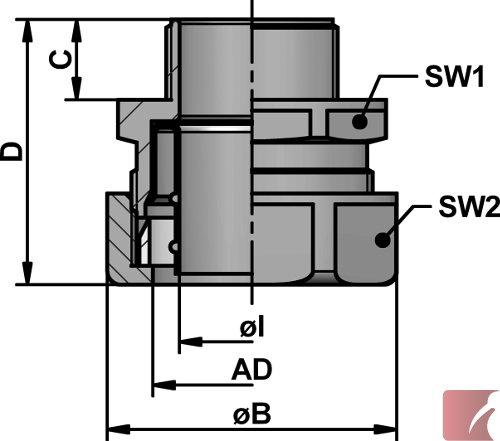

Dimensions:
φ I:
6.00
φ B:
20.00
C:
10.00
D:
40.00
Conduit OD:
10.0 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
