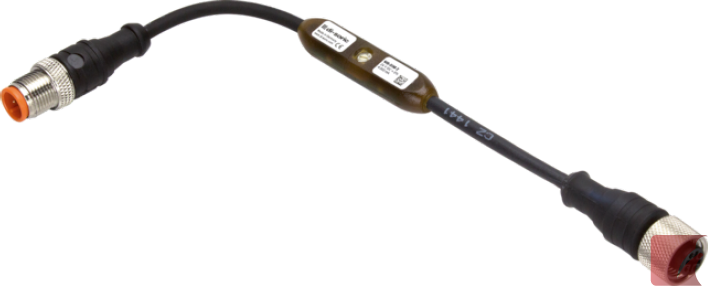

di-soric PWM Dimmer Module for MB Series Machine Lighting
MB-DIM 2

Description

di-soric PWM Dimmer Module for MB Series Machine Lighting

Product Overview:

  • Dimming and switching PWM ( Pulse Width Modulation ) module
  • Supply Voltage: 24VDC
  • Maximum current: 4.0A
  • Turns light on / off; controls light intensity
  • Potentiometer adjustable output
  • IP 67 sealing level
  • Temperature rating: -20°C to + 70°C

Use with the following Machine Lighting systems:

di-soric MB-N and MB-NP series, all models.

Dietz MBL Series, such as:

Specifications

Color:
Black
Weight:
0.1 kg
Package Quantity:
1

Certifications

Alternate SKU Numbers

MB-DIM.2 | MB-DIM-2 | MB-DIM2 | MB-DIM+2 | MB-DIM,2 | MB-DIM/2 | MB,DIM 2 | MB.DIM 2 | MB DIM 2 | MBDIM 2 | MB/DIM 2 | MB+DIM 2MBDIM 2 | MBDIM2
