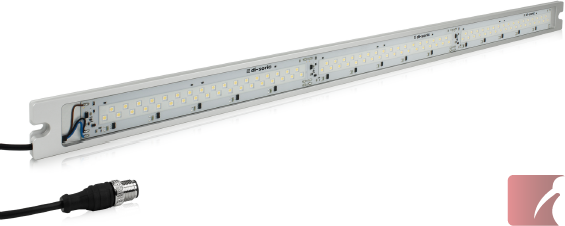

di-soric MB-N 701 mm LED Machine Lighting with M12 connection
MB-N-701-K-B3

Description

di-soric MB-N 701 mm LED Machine Lighting with M12 connection

Highlights:

  • Easy to install, compact design, high intensity machine lighting
  • Very durable - up to 50,000 hours, quality tested, long life
  • Outstanding energy efficiency - thanks to intelligent thermal management and trigger light control
  • New high-performance LEDs provide high light intensity with even homogeneous wide angle illumination (120°)
  • Suitable also for workplace lighting

Product Overview:

  • Illumination surface area of 30 x 660 mm (1.25" x 26.0")
  • Illumination level at 0.5 metres = 3900 lux, at 1.0 metre = 1300 lux
  • Luminous flux: 3300 lm
  • Angle of Illumination: Typ. 120°
  • Colour temperature: white 5000K (LED)
  • Colour Rendering Index CRI: 85

Technical Information @ +20°C, 24VDC:

  • Current consumption: 1350 mA
  • Power consumption: 32.4 W
  • Trigger PWM signal: up to 20 kHz
  • Polarity protected
  • Shock & vibration: 30g / 10-55 Hz, 1 mm
  • Temperature rating: -20°C to + 40°C

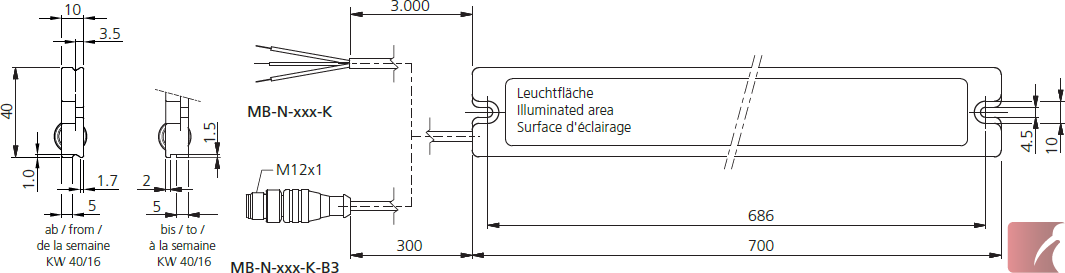

Packaging & Connection:

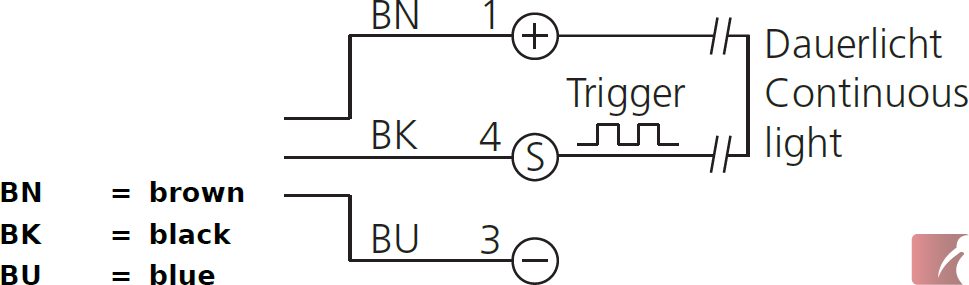

  • Connection via attached 3000 mm (10 ft) cable with standard M12, 3-pin male connector
  • Overall dimensions: 40 x 700 mm
  • Housing is anodized aluminum
  • IP 67 sealing level
  • Weight: 550 grams

Mounting Accessories & Dimmer Module:



Specifications

Color:
Silver
Weight:
.550
Package Quantity:
1
