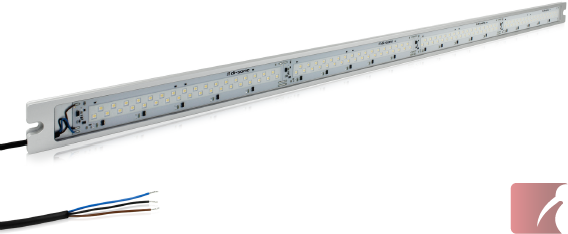

di-soric MB-N 911 mm LED Machine Lighting with pigtail cable

Part#: MB-N-911-K

Description

di-soric MB-N 911 mm LED Machine Lighting with pigtail, flying leads cable

Highlights:

Easy to install, compact design, high intensity machine lighting
Very durable - up to 50,000 hours, quality tested, long life
Outstanding energy efficiency - thanks to intelligent thermal management and trigger light control
New high-performance LEDs provide high light intensity with even homogeneous wide angle illumination (120°)
Suitable also for workplace lighting

Product Overview:

Illumination surface area of 30 x 870 mm (1.25" x 34.25")
Illumination level at 0.5 metres = 4400 lux, at 1.0 metre = 1600 lux
Luminous flux: 4400 lm
Angle of Illumination: Typ. 120°
Colour temperature: white 5000K (LED)
Colour Rendering Index CRI: 85

Technical Information @ +20°C, 24VDC:

Current consumption: 1800 mA
Power consumption: 43.2 W
Trigger PWM signal: up to 20 kHz
Polarity protected
Shock & vibration: 30g / 10-55 Hz, 1 mm
Temperature rating: -20°C to + 40°C

Packaging & Connection:

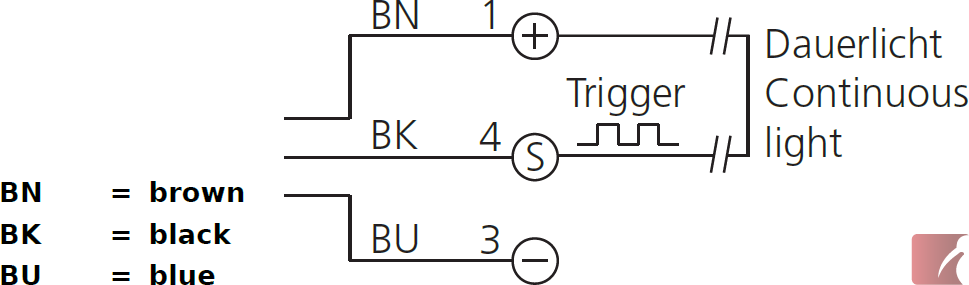

Connection via attached 3000 mm (10 ft) cable with pigtail-flying leads

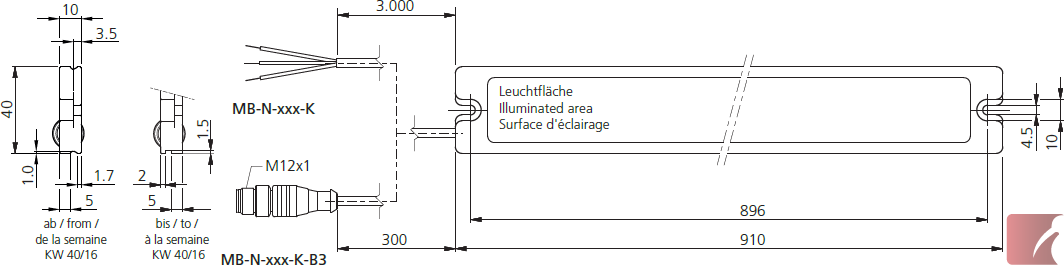

Overall dimensions: 40 x 910 mm
Housing is anodized aluminum
IP 67 sealing level
Weight: 750 grams

Mounting Accessories & Dimmer Module:

Magnetic mounts, set of 2, see here Part # MB-MHS-2
Mounting brackets, see here Part # BW-MB
Mounting nuts, set of 2, for ITEM aluminum extrusions, see here Part # MBL-NUT
Dimming and switching PWM module, supply voltage of 24 VDC, PWM up to 15 kHz - input, see here Part # MB-DIM-2
