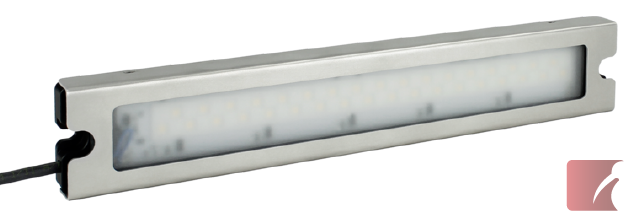

di-soric MB-NP 250 mm Protected LED Machine Lighting with pigtail cable
MB-NP-250-K

Description

di-soric MB-NP 250 mm Protected LED Machine Lighting with pigtail cable

Highlights:

  • Special Robust housing adds high degree of mechanical protection to the light assembly
  • Front frame made of V2A stainless steel
  • ESG Safety glass protects the illuminating window
  • Resistant to hot shavings splatter
  • Resistant to many cutting fluids, bases, saline solutions, oils and  greases
  • Easy to install, compact design, high intensity machine lighting
  • Very durable - up to 50,000 hours, quality tested, long life
  • Outstanding energy efficiency - thanks to intelligent thermal management and trigger light control
  • New high-performance LEDs provide high light intensity with even homogeneous wide angle illumination (120°)
  • Suitable also for workplace lighting

Product Overview:

  • Illumination surface area of 25 x 216 mm (1.0" x 8.50")
  • Illumination level at 0.5 metres = 1400 lux, at 1.0 metre = 430 lux
  • Luminous flux: 900 lm
  • Angle of Illumination: Typ. 120°
  • Colour temperature: white 5000K (LED)
  • Colour Rendering Index CRI: 85

Technical Information @ +20°C, 24VDC:

  • Current consumption: 450 mA
  • Power consumption: 10.8 W
  • Trigger PWM signal: up to 20 kHz
  • Polarity protected
  • Shock & vibration: 30g / 10-55 Hz, 1 mm
  • Temperature rating: -20°C to + 40°C

Packaging & Connection:

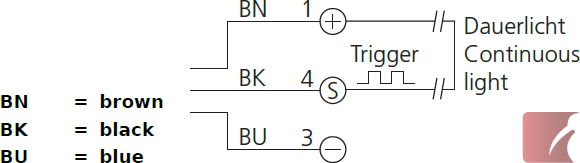

  • Connection via attached 3000 mm (10 ft) cable with pigtail-flying leads

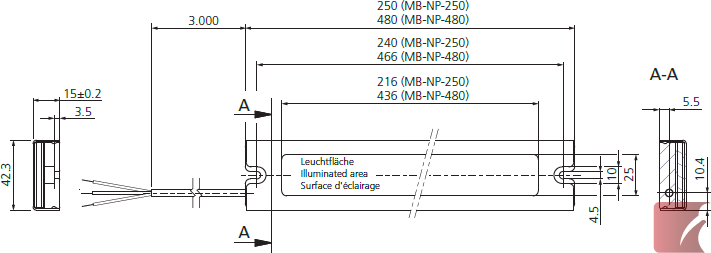

  • Overall dimensions: 42.3 x 250 mm
  • Housing is anodized aluminum
  • IP 67 sealing level
  • Weight: 410 grams

Mounting Accessories & Dimmer Module:



Specifications

Color:
Silver
Weight:
.410
Package Quantity:
1

Certifications

Alternate SKU Numbers

MB,NP,250,K | MB.NP.250.K | MB NP 250 K | MBNP250K | MB/NP/250/K | MB+NP+250+K
