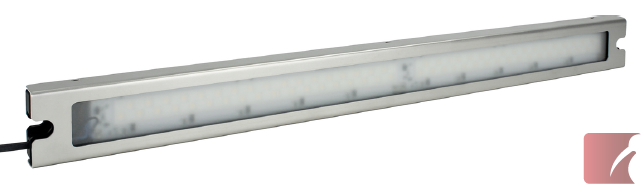

di-soric MB-NP 480 mm Protected LED Machine Lighting with pigtail cable

Highlights:

• Special Robust housing adds high degree of mechanical protection to the light assembly
• Front frame made of V2A stainless steel
• ESG Safety glass protects the illuminating window
• Resistant to hot shavings splatter
• Resistant to many cutting fluids, bases, saline solutions, oils and  greases

• Easy to install, compact design, high intensity machine lighting
• Very durable - up to 50,000 hours, quality tested, long life
• Outstanding energy efficiency - thanks to intelligent thermal management and trigger light control
• New high-performance LEDs provide high light intensity with even homogeneous wide angle illumination (120°)
• Suitable also for workplace lighting

Product Overview:

• Illumination surface area of 25 x 236 mm (1.0" x 17.17")
• Illumination level at 0.5 metres = 2600 lux, at 1.0 metre = 800 lux
• Luminous flux: 1700 lm
• Angle of Illumination: Typ. 120°
• Colour temperature: white 5000K (LED)
• Colour Rendering Index CRI: 85

Technical Information @ +20°C, 24VDC:

• Current consumption: 900 mA
• Power consumption: 21.6 W
• Trigger PWM signal: up to 20 kHz
• Polarity protected
• Shock & vibration: 30g / 10-55 Hz, 1 mm
• Temperature rating: -20°C to + 40°C

Packaging & Connection:

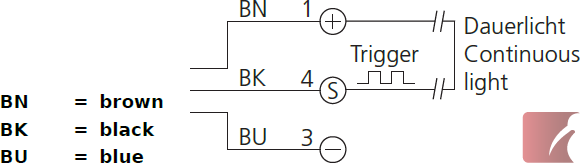

• Connection via attached 3000 mm (10 ft) cable with pigtail-flying leads

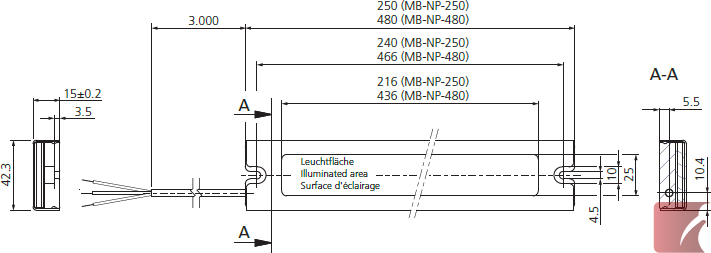

• Overall dimensions: 42.3 x 480 mm
• Housing is anodized aluminum
• IP 67 sealing level
• Weight: 700 grams

Mounting Accessories & Dimmer Module:

• Magnetic mounts, set of 2, see here Part # MB-MHS-2
• Mounting brackets, see here Part # BW-MB
• Mounting nuts, set of 2, for ITEM aluminum extrusions, see here Part # MBL-NUT
• Dimming and switching PWM module, supply voltage of 24 VDC, PWM up to 15 kHz - input, see here Part # MB-DIM-2
