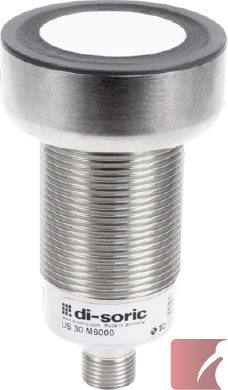

30 mm Ultrasonic Sensor, 6000 mm Range, IO-Link, Analog & Digital Outputs

IO-Link Benefits:

• Three (3) Operating modes: Ultrasonic Level Measuring Sensor, Ultrasonic Fixed Level Sensor and Ultrasonic Barrier
• Operating distance 600 to 6000 mm, as a programmable parameter
• Switching hysteresis  5 to 50 mm, as an adjustable parameter
• Sensitivity adjustment by programmable Teach parameter
• Adjustable switching frequency
• Output: Analog or digital, Push-Pull/PNP/NPN and NO/NC selectable via IO-Link
• Integrated temperature compensation maintains reliable, high accuracy measurements. IO-Link enabled and disabled
• Future proof sensor communication; extends programmable options while monitoring device functions & parameters

Analog output: Voltage 0 to 10 V or Current 4 to 20 mA, programmable parameter

Teach modes: Ultra-simple three (3) teach modes & settings. Window mode, 2-point mode and "auto-teach" mode

Unique reflective sensing mode: The sensor is taught the background and not the objects to be detected. Only deviations from the background are then signaled (detected).

Narrow detection beam: Small blind zone, insensitive to dirt buildup.

Technical Information @ +20°C, 24VDC:

• Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile
• Sound Frequency: 80 kHz
• Switching frequency: 2 Hz
• Load resistance, analog output: R > 10k ohms (0 - 10 V) or R < 400 ohms (4 - 20 mA)
• Reproducibility: 4 mm
• Resolution: 1.0 mm
• Supply voltage: 18 - 30 VDC
• Max output current: 100 mA
• Short circuit & reverse polarity protected

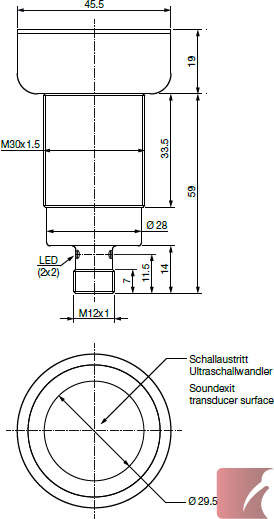

External details:

Operating temperature range of -25ºC to +70ºC

IP 67 sealing level with a sturdy nickel-plated brass casing

Epoxy resin PUR transducer surface

Bright 2 x yellow ring LED for display output and 2 x green LED for status; both at connection

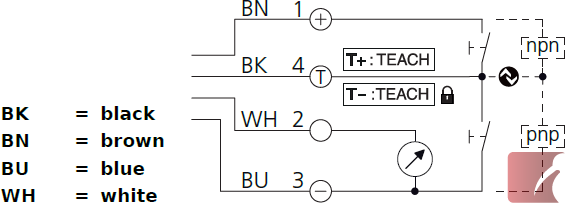

Connection - M12 (4 wire) connector
