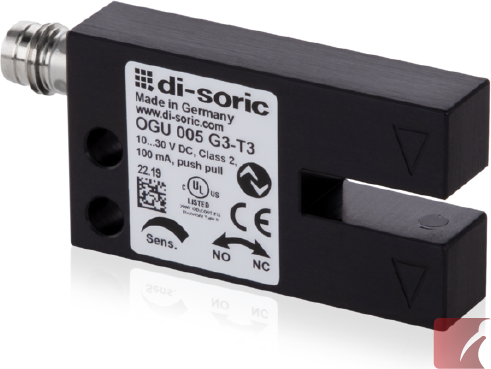

di-soric 5 mm Infrared Light Fork Barrier, IO-Link & manually configurable
OGU 005 G3-T3

Description

5 mm Fork Light Barrier & Sensor with IO-Link or manual selectable output

IO-Link Benefits:

  • 4 Operating modes, Standard (default), High resolution (for small objects), Power (cut through dirt & dust), Speed (safe detection of fast moving objects)
  • On / Off delay as a programmable parameter
  • Diagnostics as a selectable parameter
  • Sensitivity adjustment by programmable parameter or manual potentiometer
  • Adjustable switching frequency
  • Output: Push-Pull/PNP/NPN selectable via IO-Link, 100 mA and  NO/NC selectable by IO-Link or manual potentiometer

Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile

Emitted Light: Infrared 880 nm, clocked

High switching frequency: 10000 Hz (default), selectable 14000 Hz via IO-Link in "Speed" mode

Technical Information @ +20°C, 24VDC:

  • Fork width  - 5 mm
  • Resolution - 0.2 mm (steel ball)
  • Supply voltage - 10 - 30 VDC
  • Max output current - 100 mA
  • Short circuit and polarity protected
  • Switching frequency - 10 / 14 kHz
  • Reproducibility - 0.02 mm

External details:

Operating temperature range of -25ºC to +60ºC

IP 67 sealing level with a sturdy, black anodized aluminum housing

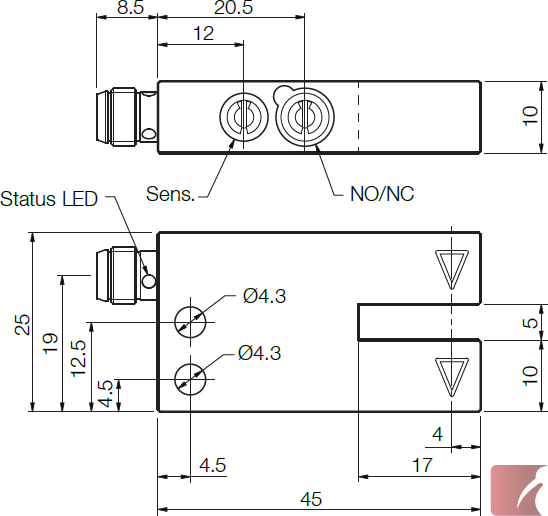

Outer dimensions - H/W/D 25 / 45 / 10 mm, fork branch length = 16.8 mm

Bright ring LED signal light at connection

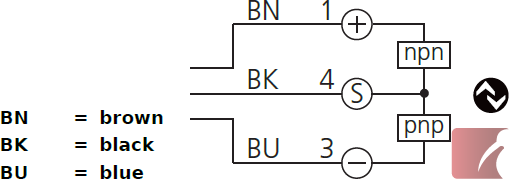

Connection - M8 (3 wire) connector



Specifications

Colour:
Black
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Fork & Slot Sensors
Sensor Connection:
M8 - 3 Pole
Sensor Emitted Light:
Infrared
Sensor Fork Style:
"U" (slot) shape
Sensor Fork Width:
5 mm
Sensor Output:
IO-Link

Certifications

Alternate SKU Numbers

OGU.005.G3-T3 | OGU-005-G3-T3 | OGU005G3-T3 | OGU+005+G3-T3 | OGU,005,G3-T3 | OGU/005/G3-T3 | OGU 005 G3,T3 | OGU 005 G3.T3 | OGU 005 G3 T3 | OGU 005 G3T3 | OGU 005 G3/T3 | OGU 005 G3+T3OGU 005 G3T3 | OGU005G3T3
Direct Replacement for di-soric Number:
OGU 005 P3K-TSSL
