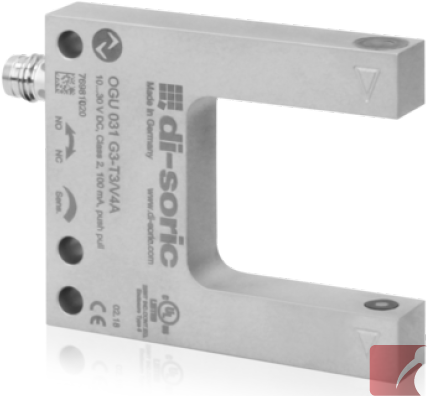

di-soric 30 mm Red light Fork Barrier, IO-Link, Stainless Steel
OGU 031 G3-T3/V4A

Description

30 mm Fork Light Barrier & Sensor in a stainless steel housing with IO-Link or manual selectable output

IO-Link Benefits:

  • 4 Operating modes, Standard (default), High resolution (for small objects), Power (cut through dirt & dust), Speed (safe detection of fast moving objects)
  • On / Off delay as a programmable parameter
  • Diagnostics as a selectable parameter
  • Sensitivity adjustment by programmable parameter or manual potentiometer
  • Adjustable switching frequency
  • Output: Push-Pull/PNP/NPN selectable via IO-Link, 100 mA and  NO/NC selectable by IO-Link or manual potentiometer

Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile

Emitted Light: Red Light 660 nm, clocked

High switching frequency: 5000 Hz (default), selectable 8000 Hz via IO-Link in "Speed" mode

Technical Information @ +20°C, 24VDC:

  • Fork width  - 30 mm
  • Resolution - 0.3 mm (steel ball)
  • Supply voltage - 10 - 30 VDC
  • Max output current - 100 mA
  • Short circuit and polarity protected
  • Switching frequency - 5 / 8 kHz
  • Reproducibility - 0.02 mm

External details:

Operating temperature range of -25ºC to +60ºC

IP 67 sealing level

Robust stainless steel V4A housing, (1.4404 / AISI 316L-1.4571 / AISI 316Ti): for use in the pharma, beverage and food industries

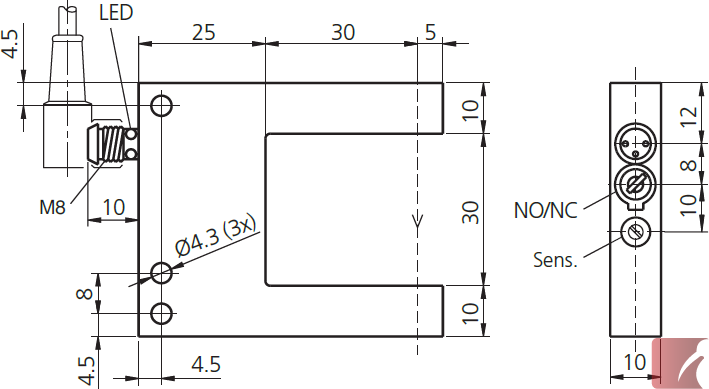

Outer dimensions - H/W/D 50 / 60 / 10 mm, branch length = 35 mm

Bright ring LED signal light at connection

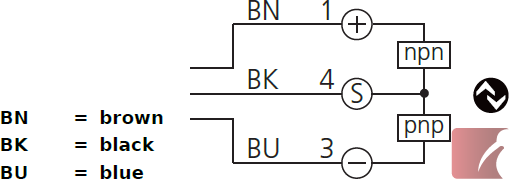

Connection - M8 (3 pole) connector



Specifications

Colour:
Silver
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Fork & Slot Sensors
Sensor Connection:
M8 - 3 Pole
Sensor Emitted Light:
Red Light
Sensor Fork Style:
"U" (slot) shape
Sensor Fork Width:
30 mm
Sensor Output:
IO-Link

Certifications

Alternate SKU Numbers

OGU.031.G3-T3/V4A | OGU-031-G3-T3/V4A | OGU031G3-T3/V4A | OGU+031+G3-T3/V4A | OGU,031,G3-T3/V4A | OGU/031/G3-T3/V4A | OGU 031 G3,T3/V4A | OGU 031 G3.T3/V4A | OGU 031 G3 T3/V4A | OGU 031 G3T3/V4A | OGU 031 G3/T3/V4A | OGU 031 G3+T3/V4AOGU 031 G3-T3 V4A | O
Direct Replacement for di-soric Number:
OGU 031 P3K/V4A
