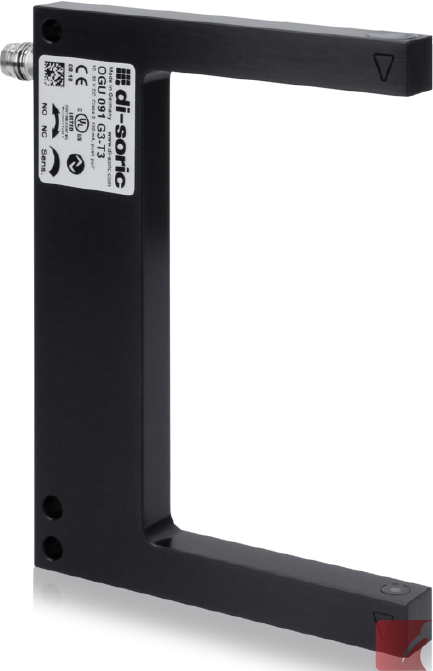

90 mm Fork Light Barrier & Sensor with IO-Link or manual selectable output

IO-Link Benefits:

• 4 Operating modes, Standard (default), High resolution (for small objects), Power (cut through dirt & dust), Speed (safe detection of fast moving objects)
• On / Off delay as a programmable parameter
• Diagnostics as a selectable parameter
• Sensitivity adjustment by programmable parameter or manual potentiometer
• Adjustable switching frequency
• Output: Push-Pull/PNP/NPN selectable via IO-Link, 100 mA and  NO/NC selectable by IO-Link or manual potentiometer

Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile

Emitted Light: Red Light 660 nm, clocked

High switching frequency: 5000 Hz (default), selectable 8000 Hz via IO-Link in "Speed" mode

Technical Information @ +20°C, 24VDC:

• Fork width  - 90 mm
• Resolution - 0.3 mm (steel ball)
• Supply voltage - 10 - 30 VDC
• Max output current - 100 mA
• Short circuit and polarity protected
• Switching frequency - 5 / 8 kHz
• Reproducibility - 0.02 mm

External details:

Operating temperature range of -25ºC to +60ºC

IP 67 sealing level with a sturdy, black anodized aluminum housing

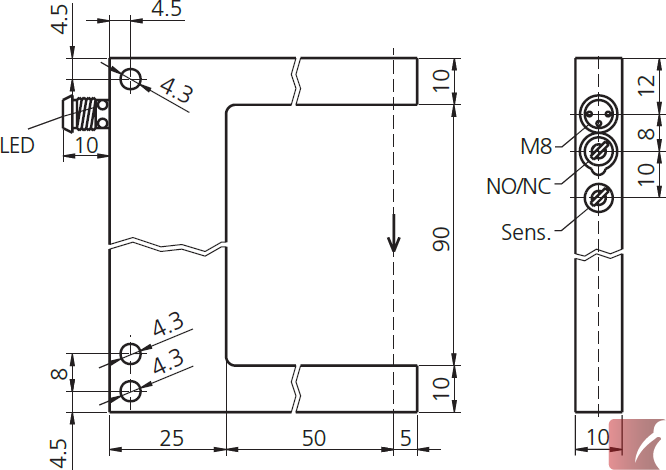

Outer dimensions - H/W/D 110 / 80 / 10 mm, branch length = 55 mm

Bright ring LED signal light at connection

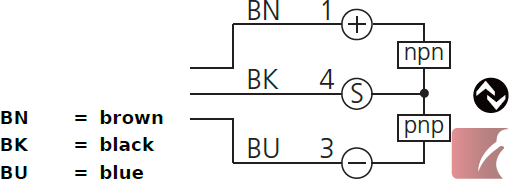

Connection - M8 (3 wire) connector
