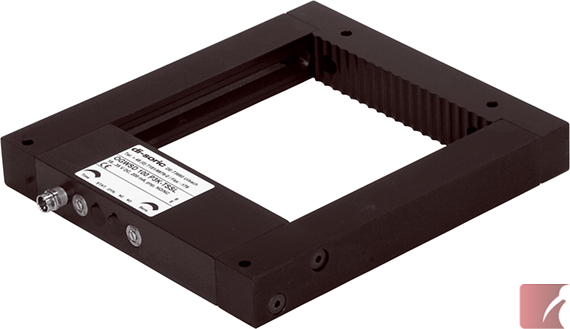

100 x 92 mm di-soric Frame Light-Barrier Sensor NPN NO/NC

Frame light barriers, the ideal solution to detect small parts.  Metallic or non-metallic objects can be detected at random

or as a constant flow, quickly and independent of the shape & composition of the part.

Also known as an optical Frame Sensor, photo electric frame light barrier or optical window sensor.

Highlights:

• Active sensing area: 100 x 92 mm
• Resolution:  2.5 mm (dynamic) and 3.0 mm (static)
• Response time: 0.1 ms
• Output: Digital NPN NO/NC, 200 mA
• Infrared Light: Self-contained multiple beam LED sensor technology with adjustable sensitivity
• Very easy to install. No alignment is required

User Adjustable Controls:

• Output - NPN, NO or NC
• Operating modes: Choose from two, static (congestion control) or dynamic (fastest response, smallest objects)
• Pulse stretching: Adjustable from 0.1 - 150 ms
• Sensitivity adjustment: via potentiometer

Technical Data:

• Supply voltage: 10...35 VDC, No load current 35 mA max.
• Max output current: 200 mA
• Ambient light immunity of 20k Lux
• Short circuit and polarity protected
• Ambient temperature during operation: 0ºC to +60ºC
• Housing: Sturdy, black anodized aluminum, IP67. Features a detachable frame crossbar to simplify installation in space limited applications.
• Connection: M8 (3 wire) connector

Applications for Frame Light-Barrier Sensors:

• Small part detection
• Counting & verifying
• Part ejection verification
• Flow control
• Packaging and material handling equipment
• Numerous automation, machinery, food, pharmaceutical & automotive assembly uses
