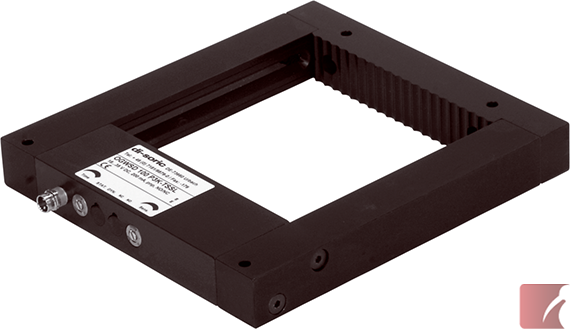

100 x 92 mm di-soric Frame Light-Barrier Sensor PNP NO/NC
OGWSD 100 P3K-TSSL

Description

100 x 92 mm di-soric Frame Light-Barrier Sensor PNP NO/NC

Frame light barriers, the ideal solution to detect small parts.  Metallic or non-metallic objects can be detected at random

or as a constant flow, quickly and independent of the shape & composition of the part.

Also known as an optical Frame Sensor, photo electric frame light barrier or optical window sensor.

Highlights:

  • Active sensing area: 100 x 92 mm
  • Resolution:  2.5 mm (dynamic) and 3.0 mm (static)
  • Response time: 0.1 ms
  • Output: Digital PNP NO/NC, 200 mA
  • Infrared Light: Self-contained multiple beam LED sensor technology with adjustable sensitivity
  • Very easy to install. No alignment is required

User Adjustable Controls:

  • Output - PNP, NO or NC
  • Operating modes: Choose from two, static (congestion control) or dynamic (fastest response, smallest objects)
  • Pulse stretching: Adjustable from 0.1 - 150 ms
  • Sensitivity adjustment: via potentiometer

Technical Data:

  • Supply voltage: 10...35 VDC, No load current 35 mA max.
  • Max output current: 200 mA
  • Ambient light immunity of 20k Lux
  • Short circuit and polarity protected
  • Ambient temperature during operation: 0ºC to +60ºC

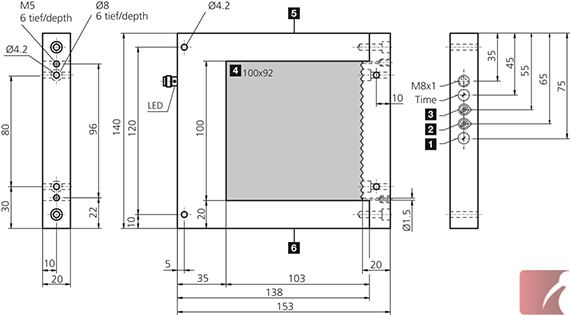

  • Housing: Sturdy, black anodized aluminum, IP67. Features a detachable frame crossbar to simplify installation in space limited applications.

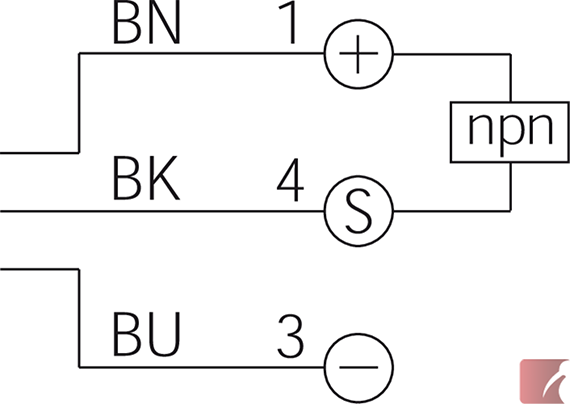

  • Connection: M8 (3 wire) connector

Applications for Frame Light-Barrier Sensors:

  • Small part detection
  • Counting & verifying
  • Part ejection verification
  • Flow control
  • Packaging and material handling equipment
  • Numerous automation, machinery, food, pharmaceutical & automotive assembly uses

Specifications

Colour:
Black
Weight:
0.2 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Frame Sensors
Sensor Active Area:
100 x 92 mm
Sensor Connection:
M8 - 3 Pole
Sensor Emitted Light:
Infrared
Sensor Operating Principle:
Selectable
Sensor Output:
PNP / NO+NC

Certifications
