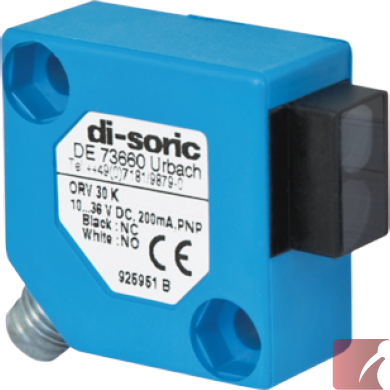

di-soric 2000 mm Red Light Retroreflective Sensor, PNP NO output
ORV 30 K 2000 P2K-TSSL

Description

di-soric 2000 mm Red Light Retroreflective Sensor, PNP NO output

Features:

Emitted Light: Red 660 nm, clocked

High switching frequency: 1000 Hz

Light/dark switching modes

Sensitivity adjustment via potentiometer

Technical Information @ +20°C, 24VDC:

  • Operating Distance - 200 ... 2000 mm, manually adjustable
  • Output - PNP NO
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Switching frequency - 1 kHz

External details:

Operating temperature range of -25ºC to +55ºC

IP 67 sealing level with a sturdy, plastic (PBT) housing

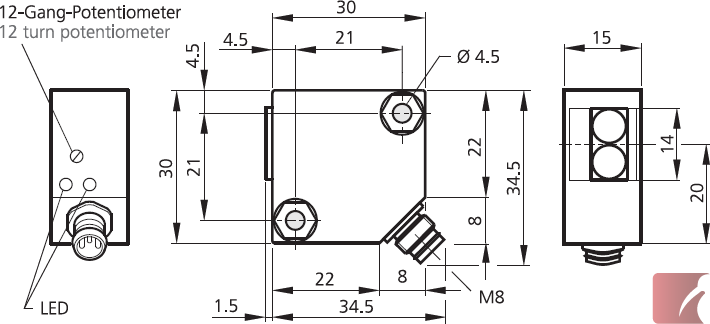

Outer dimensions - H/W/D 30 / 30 / 15 mm, cuboid design

Bright ring LED signal light at connection

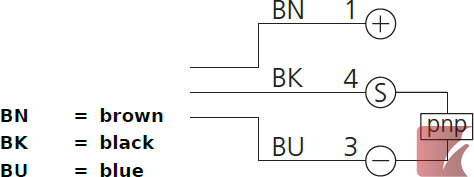

Connection - M8 (3 pole) connector



Specifications

Colour:
Blue
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Photo Electric
Sensor Sensing Distance:
2000 mm
Sensor Connection:
M8 - 3 Pole
Sensor Emitted Light:
Visible Laser
Sensor Fork Style:
"U" (slot) shape
Sensor Fork Width:
50 mm
Sensor Output:
PNP / NO

Certifications
