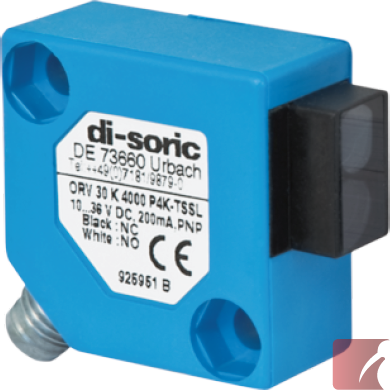

di-soric 4000 mm Red Light Retroreflective Sensor, PNP "Exclusive OR" output with cable connection
ORV 30 K 4000 P4LK

Description

di-soric 4000 mm Red Light Retroreflective Sensor, PNP "Exclusive OR" output, with cable connection

Features:

Emitted Light: Red 660 nm, clocked

High switching frequency: 1000 Hz

Light/dark switching modes

Sensitivity adjustment via potentiometer

Technical Information @ +20°C, 24VDC:

  • Operating Distance - 200 ... 4000 mm, manually adjustable
  • Output - PNP Exclusive OR
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Switching frequency - 1 kHz

External details:

Operating temperature range of -25ºC to +55ºC

IP 67 sealing level with a sturdy, plastic (PBT) housing

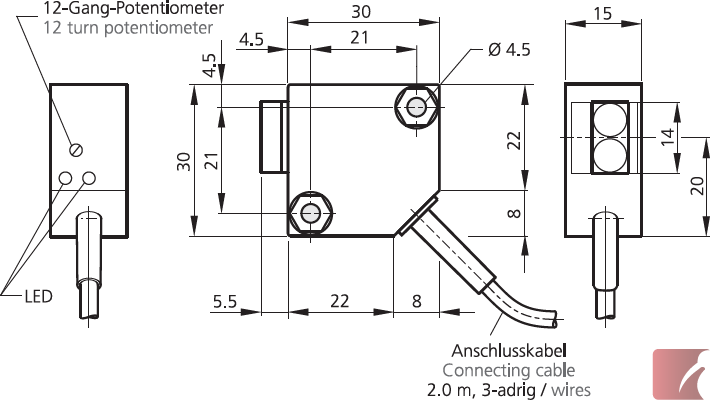

Outer dimensions - H/W/D 30 / 30 / 15 mm, cuboid design

Bright ring LED signal light at connection

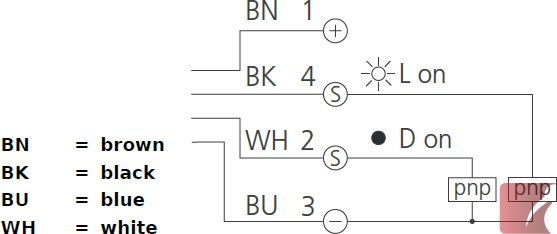

Connection - by integrated 2 metre length cable with 4 wire pigtails



Specifications

Colour:
Blue
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Photo Electric
Sensor Sensing Distance:
4000 mm
Sensor Connection:
Cable
Sensor Emitted Light:
Visible Laser
Sensor Fork Style:
"U" (slot) shape
Sensor Fork Width:
50 mm
Sensor Housing Size:
Cuboid

Certifications

Alternate SKU Numbers

ORV.30.K.4000.P4LK | ORV-30-K-4000-P4LK | ORV30K4000P4LK | ORV+30+K+4000+P4LK | ORV,30,K,4000,P4LK | ORV/30/K/4000/P4LK | ORV 30 K 4000 P4LK | ORV 30 K 4000 P4LK | ORV 30 K 4000 P4LK | ORV 30 K 4000 P4LK | ORV 30 K 4000 P4LK | ORV30K4000P4LK
