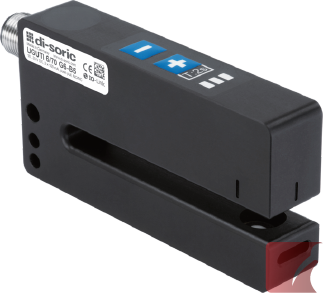

di-soric 6 mm Ultrasonic Label Sensor, IO-Link & keypad configurable

Part#: UGUTI 6/70 G6-B5

Buy This Product Online Now!

Description

6 mm Ultrasonic through beam Label Sensor, IO-Link & keypad configurable

Detects metalized, transparent and paper based labels

IO-Link Benefits:

On / Off delay as a programmable parameter
Diagnostics as a selectable parameter
Remote teach with key-lock function
Adjustable sensitivity & fine-tuning settings

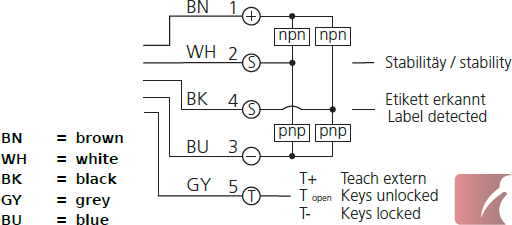

Output: Two pairs of Push-Pull/PNP/NPN selectable via IO-Link, 100 mA and NO/NC selectable by IO-Link or manual potentiometer

Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile

Large fork opening and fork depth: 6 mm / 70 mm

Label thickness < 5.9 mm

Maximum belt speed (based on 2 mm label & gap): 48,000 labels / minute. Specific operation is dependent on label thickness and label material & backing.

High switching frequency: 4000 Hz

Technical Information @ +20°C, 24VDC:

Supply voltage: 18 - 30 VDC
Max output current: 100 mA per output
Short circuit and polarity protected
Switching frequency: 4 kHz
Reproducibility: +/- 0.02 mm

External details:

Operating temperature range of 0ºC to +60ºC

IP 67 sealing level with a sturdy, black anodized aluminum housing

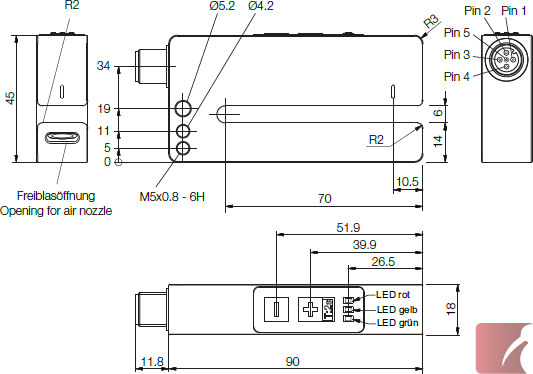

Outer dimensions - H/W/D 45 / 90 / 18 mm

Fork branch lengths = 70 mm

Bright display LED outputs: Red = warning, insufficient stability, Green = active operating mode and Yellow displays the output

Connection - Axial, M12 (5 pole) connector

Specifications

Colour:

Black

Weight:

0.1 kg

Package quantity:

Sensor Details:

Sensor Type:

Fork & Slot Sensors

Sensor Connection:

M12 - 5 Pole

Sensor Fork Style:

Ultrasonic

Sensor Fork Width:

6 mm

Sensor Output:

IO-Link

Datasheet

disoric-uguti670g6b5-ibiselectroproducts.pdf
