di-soric 12 mm Cuboid Ultrasonic Background Suppression Sensor, 400 mm Range, IO-Link, Digital Output
US Q12 M 400 HP G3-T4

Description

12 mm Cuboid Ultrasonic Background Suppression Sensor, 400 mm Range, IO-Link, Digital Output

IO-Link Benefits:

  • Ideal background suppression diffuser, set-up via IO-Link
  • Operating distance 40 to 400 mm, as a programmable parameter
  • Switching hysteresis  2 to 20 mm, as an adjustable parameter
  • Adjustable switching frequency
  • Output: Push-Pull/PNP/NPN and NO/NC selectable via IO-Link
  • Integrated temperature compensation maintains reliable, high accuracy measurements. IO-Link enabled and disabled
  • Future proof sensor communication; extends programmable options while monitoring device functions & parameters

Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile

Teach modes: Ultra-simple three (3) teach modes & settings. Window mode, 2-point mode and "auto-teach" mode

Unique background suppression sensing mode: The sensor is optimized for diffused mode sensing. Sensitivity adjustment is made by potentiometer

Narrow detection beam: Small blind zone, insensitive to dirt buildup.

Technical Information @ +20°C, 24VDC:

  • Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile
  • Sound Frequency: 300 kHz
  • Switching frequency: < 10 Hz
  • Reproducibility: 0.5 mm
  • Resolution: 1.0 mm
  • Supply voltage: 18 - 30 VDC
  • Max output current: 150 mA
  • Short circuit & reverse polarity protected

External details:

Operating temperature range of -10ºC to +70ºC

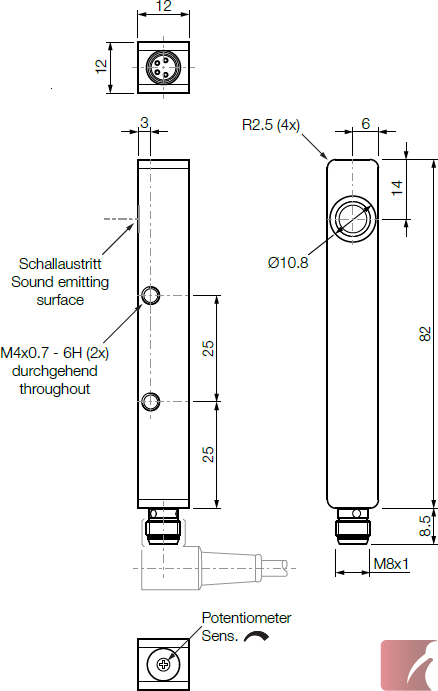

IP 67 sealing level with a sturdy, black anodized, aluminum casing

Epoxy resin PUR transducer surface

Bright yellow ring LED signal light at connection

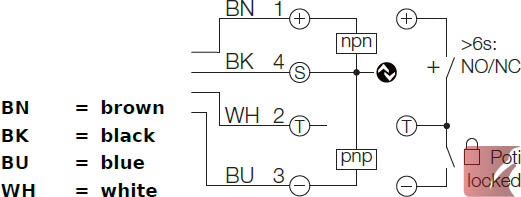

Connection - M8 (4 wire) connector



Specifications

Colour:
Black
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Ultrasonic Sensors
Sensor Connection:
M8 - 4 Pole
Sensor Emitted Light:
Red Light
Sensor Fork Style:
"U" (slot) shape
Sensor Fork Width:
30 mm
Sensor Housing Size:
Cuboid
Sensor Output:
IO-Link
