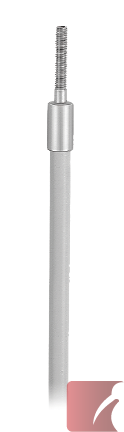

di-soric 600 mm Diffused Sensing, glass Fiber Optic Cable, straight bifurcated M4 threaded tip
WRB 120 S-M4-2.5

Description


di-soric 600 mm Diffused Sensing, glass Fiber Optic Cable, straight bifurcated M4 threaded tip, Silicone Jacket

Product Overview:

  • Diffused reflective sensing principle, bifurcated
  • M4 threaded straight sensing end
  • Cable Length: 600 mm
  • Fiber bundle size: 2.5 mm
  • Each fibre size: 0.05 mm
  • Sensing distance: up to 80 mm
  • Viewing angle: 67°
  • Bending radius:  3 x outer fiber cable diameter
  • IP 67 sealing level
  • Temperature rating: -40°C to +180°C, short term +250° C
  • High quality, robust & very flexible

Materials:

  • Glass fibers
  • Stainless steel sensing tip
  • Silicone jacket over stainless steel cladding

Use with the following devices:

di-soric OLV 40 series fiber optic amplifiers



Specifications

Color:
Black
Weight:
0.1 kg
Package Quantity:
1

Certifications

Alternate SKU Numbers

WRB.120.S-M4-2.5 | WRB-120-S-M4-2.5 | WRB120S-M4-2.5 | WRB+120+S-M4-2.5 | WRB,120,S-M4-2.5 | WRB/120/S-M4-2.5 | WRB 120 S,M4,2.5 | WRB 120 S.M4.2.5 | WRB 120 S M4 2.5 | WRB 120 SM42.5 | WRB 120 S/M4/2.5 | WRB 120 S+M4+2.5WRB 120 SM42.5 | WRB120SM425
