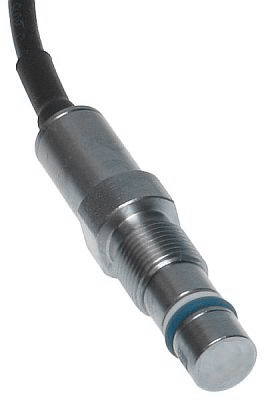

2.2 mm Range High Pressure Inductive Sensor 500 bar / 7251 psi PNP/NO output 55 mm M12 body with cable
IHP-2.2-12BPS-ST4-0.2
Buy This Product Online Now!

Description

2.2 mm Range High Pressure Inductive Sensor 500 bar / 7251 psi PNP/NO output 55 mm M12 stainless steel body with cable

  • Robust sensor, easy to install
  • Comes with attached 200 mm cable & M12, 3-pole connector

Highlights:

500 bar - 7251 psi rated

Self-contained, compact, inductive sensor technology

Operating temperature range of -40ºC to +110ºC (-40ºF to +230ºF)

Widely chemical resistant

Very easy to install.

Construction Data:

  • Sensor body length 55 mm
  • M12 x 1 mm threaded 303 stainless steel body
  • Stainless steel sensing face
  • IP 69K sealing level

Technical Data:

  • high pressure rated 500 bar - 7251 psi
  • measuring range up to 2.2 mm, flush mount
  • operating frequency - 400 Hz
  • output PNP/ NO  200 mA max
  • supply voltage 6 to 35 VDC
  • internal power consumption < 13 mA
  • short circuit, polarity and overload protected
  • includes a 200 mm cable with an M12 (3 pole) connector

Applications for High Pressure Rated Inductive Proximity Sensors:

  • Use in a wide range of hydraulic cylinder and valve positioning applications
  • Where high pressure sensors are exposed to hostile environments and are subject to pressures that a standard sensor simply cannot hold up in
  • For end stop checks on hydraulic cylinders and the monitoring of valve positions
  • Numerous automation, machinery & automotive assembly, uses

Specifications

Colour:
Silver
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Inductive High Pressure
Sensor Connection:
Cable
Sensor Housing Size:
M12 x 1 mm
Sensor Max. Pressure Rating:
500 bar / 7251 psi
Sensor Output:
PNP / NO
