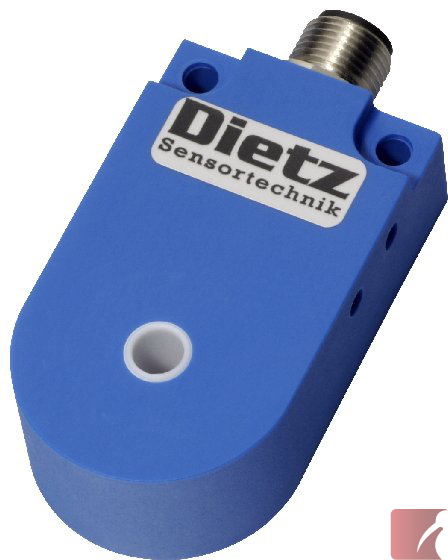

Inductive Ring / Tube Sensor 6.1 mm diameter
IR 06 PSK-ST4

Description

6.1 mm Inductive Ring Sensor with PNP, NO output

Also known as an inductive tube sensor

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained, compact sensor technology

Static operation - Ring sensors with static switching operation, detect both fast and very slow traveling metallic objects, even objects halted or jammed in the middle of the ring, e.g. for level controlling, part in position

High resolution / fast response time

Insensitive to dirt

Adjustable pulse stretching

Operating temperature range of -25ºC to +70ºC

IP 67 sealing level with a sturdy polyamide housing

Very easy to install.

Technical Data:

  • Ring Diameter  - 6.1 mm
  • Smallest detectable object size  - 1.0 mm
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Internal power consumption - < 10 mA
  • Voltage insulation - 500 V
  • Response / Release time - 0.2 ms
  • Switching frequency - depends on pulse stretching
  • Pulse stretching - adjustable from 10 - 150 ms
  • Object speed - Max 35 m/s
  • M12 (3 wire) connector

Applications for Inductive Ring / Tube Sensors with static switching operation:

  • Ideal solution for metallic parts detection using automated feed systems
  • Part ready and in position
  • Counting & verifying
  • Automated assembly machinery & equipment
  • Food industry (detection of foreign bodies)
  • Numerous automation, machinery & automotive assembly uses

Specifications

Colour:
Blue
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Inductive Ring Sensor
Sensor Operating Principle:
Static
Sensor Output:
PNP / NO
Sensor Ring Diameter:
6 mm

Certifications

Alternate SKU Numbers

IR.06.PSK-ST4 | IR-06-PSK-ST4 | IR06PSK-ST4 | IR+06+PSK-ST4 | IR+06+PSK-ST4 | IR 06 PSK,ST4 | IR 06 PSK.ST4 | IR 06 PSK ST4 | IR 06 PSKST4 | IR 06 PSKST4 | IR06PSKST4
Direct Replacement for di-soric Number:
IR 6 PSOK-IBS
