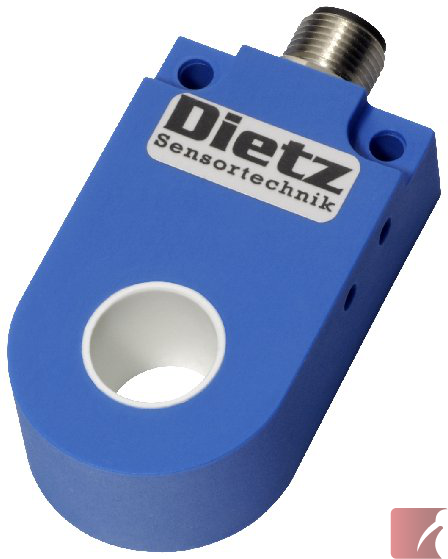

15 mm Inductive Ring Sensor with PNP, NO output

Also known as an inductive tube sensor

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained, compact sensor technology

Static operation

High resolution / fast response time

Insensitive to dirt

Adjustable pulse stretching

Operating temperature range of -25ºC to +70ºC

IP 67 sealing level with a sturdy polyamide housing

Very easy to install.

Technical Data:

• Ring Diameter  - 15.1 mm
• Smallest detectable object size  - 2.0 mm
• Supply voltage - 10 - 35 VDC
• Max output current - 200 mA
• Short circuit and polarity protected
• Internal power consumption - < 10 mA
• Voltage insulation - 500 V
• Response / Release time - 0.2 ms
• Switching frequency - depends on pulse stretching
• Pulse stretching - adjustable from 10 - 150 ms
• Object speed - Max 35 m/s
• Mounting distance to metal - Min 5 mm
• M12 (3 wire) connector

Applications for Inductive Ring / Tube Sensors:

• Ideal solution for metallic parts detection using automated feed systems
• Counting & verifying

• Automated assembly machinery & equipment
• Numerous automation, machinery & automotive assembly uses
