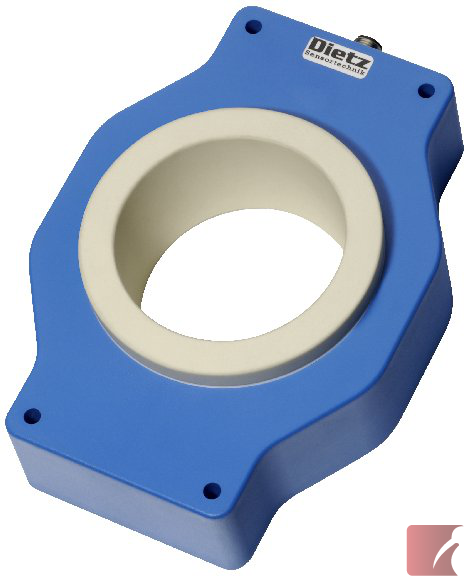

Inductive Ring / Tube Sensor 80 mm diameter
IR 80 PSK-ST4

Description

80 mm Inductive Ring Sensor with PNP, NO output

Also known as an inductive tube sensor

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained, compact sensor technology

Static operation

High resolution / fast response time

Adjustable sensitivity

Insensitive to dirt

Adjustable pulse stretching

Operating temperature range of -25ºC to +70ºC

IP 67 sealing level with a sturdy polyamide housing

Very easy to install.

Technical Data:

  • Ring Diameter  - 80.0 mm
  • Smallest detectable object size  - 10.0 mm
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Internal power consumption - < 20 mA
  • Voltage insulation - 500 V
  • Response / Release time -  ms
  • Switching frequency - depends on pulse stretching
  • Pulse stretching - adjustable from 10 - 150 ms
  • Object speed - Max 35 m/s
  • Mounting distance to metal - Min 60 mm
  • M12 (3 wire) connector

Applications for Inductive Ring / Tube Sensors:

  • Ideal solution for metallic parts detection using automated feed systems
  • Counting & verifying
  • Automated assembly machinery & equipment
  • Numerous automation, machinery & automotive assembly uses

Specifications

Colour:
Blue
Weight:
1.0 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Inductive Ring Sensor
Sensor Operating Principle:
Static
Sensor Output:
PNP / NO
Sensor Ring Diameter:
80 mm

Certifications

Alternate SKU Numbers

IR.80.PSK-ST4 | IR-80-PSK-ST4 | IR80PSK-ST4 | IR+80+PSK-ST4 | IR+80+PSK-ST4 | IR 80 PSK,ST4 | IR 80 PSK.ST4 | IR 80 PSK ST4 | IR 80 PSKST4 | IR 80 PSKST4 | IR80PSKST4
