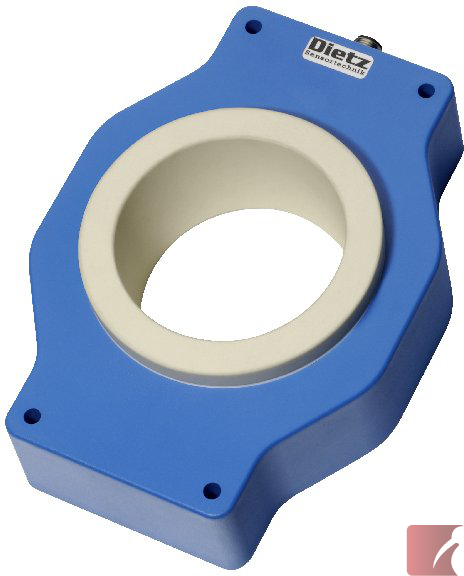

Inductive Ring / Tube Sensor 80 mm diameter dynamic switching
IRD 80 PSK-ST4

Description

80 mm Inductive Ring Sensor with PNP, NO output

Also known as an inductive tube sensor

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained, compact sensor technology

Dynamic switching operation - Ring sensors with dynamic switching are able to detect the smallest objects even at high speeds. For example, tiny springs conveyed by compressed air. Very slow or halted objects are not detected.

High resolution / fast response time

Insensitive to dirt

Adjustable pulse stretching

Operating temperature range of -25ºC to +70ºC

IP 67 sealing level with a sturdy polyamide housing

Very easy to install.

Technical Data:

  • Ring Diameter  - 80.0 mm
  • Smallest detectable object size  - 5.0 mm
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Internal power consumption - < 20 mA
  • Voltage insulation - 500 V
  • Response / Release time -  ms
  • Switching frequency - depends on pulse stretching
  • Pulse stretching - adjustable from 10 - 150 ms
  • Object speed - Min 0.1 m/s, Max 35 m/s
  • Mounting distance to metal - Min 60 mm
  • M12 (3 wire) connector

Applications for Inductive Ring / Tube Sensors with dynamic switching operation:

  • Perfect solution for small parts detection moving at very high speeds i.e. small screws moving through an air driven tube or parts being ejected from a mold
  • Ideal solution for metallic parts detection using automated feed systems
  • Counting & verifying
  • Automated assembly machinery & equipment
  • Food industry (detection of foreign bodies)
  • Numerous automation, machinery & automotive assembly uses

Specifications

Colour:
Blue
Weight:
0.750 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Inductive Ring Sensor
Sensor Operating Principle:
Dynamic
Sensor Output:
PNP / NO
Sensor Ring Diameter:
80 mm

Certifications

Alternate SKU Numbers

IRD.80.PSK-ST4 | IRD-80-PSK-ST4 | IRD80PSK-ST4 | IRD+80+PSK-ST4 | IRD+80+PSK-ST4 | IRD 80 PSK,ST4 | IRD 80 PSK.ST4 | IRD 80 PSK ST4 | IRD 80 PSKST4 | IRD 80 PSKST4 | IRD80PSKST4
Direct Replacement for di-soric Number:
IRD 80 PSOK-IBS
