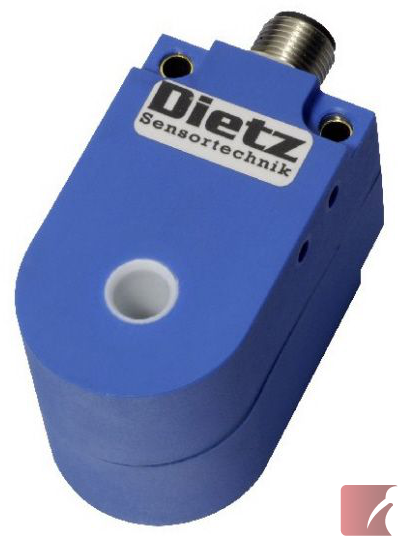

8.0 mm Wire Break Sensor with PNP, NO output

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained, compact sensor technology

Static operation - Ring sensors with static switching operation, detect both fast and very slow traveling metallic objects

High resolution / fast response time

Insensitive to dirt

Adjustable pulse stretching

Operating temperature range of -25ºC to +70ºC

IP 65 sealing level with a sturdy polyamide housing and ceramic inner ring

Very easy to install.

Technical Data:

• Ring Diameter  - 8.0 mm
• Smallest detectable wire size  -  0.25 mm of copper wire
• Supply voltage - 10 - 35 VDC
• Max output current - 200 mA
• Short circuit and polarity protected
• Internal power consumption - < 10 mA
• Voltage insulation - 500 V
• Response / Release time - 0.2 ms
• Switching frequency - 10 Hz
• Pulse stretching - adjustable up to 100 ms
• Object speed - Max 35 m/s
• M12 (3 wire) connector

Applications for Inductive Ring Wire Break Sensors with static switching operation:

• Wire break detection. This sensor was specifically designed for wire break detection.
