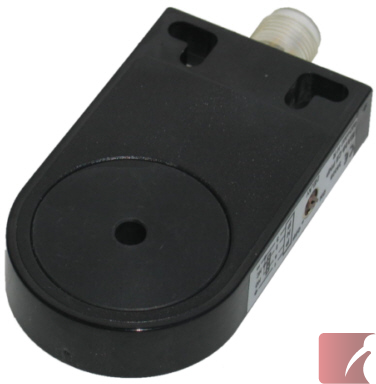

5.0 mm Inductive Ring Sensor with NPN, NO+ NC output, with M12 connector

Not for flush mounted applications

Static operation with LED indicator and adjustable sensitivity

Good for simple / basic applications

Tolerant to dirt

Fixed time pulse stretching

Operating temperature range of -20ºC to +60ºC

IP 65 sealing level with a polyamide housing

• Ring Diameter  - 5.0 mm
• Smallest detectable object diameter  - 0.7 mm
• Shortest detectable object length  - 1.0 mm
• Supply voltage - 10 - 30 VDC
• Max output current - 200 mA
• Short circuit protected
• Internal power consumption - < 15 mA @ 24 VDC
• Repeatability = < 0.3 mm
• Switching frequency - 600 to 1500 Hz
• Fixed time Pulse stretching of 100 ms
• M12 (4 pole) connector
