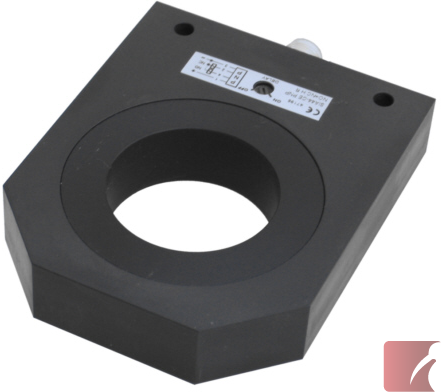

44.0 mm Inductive Ring Sensor with cable
SIA44-CE NPN NO+NC R

Description

44.0 mm Inductive Ring Sensor with NPN, NO+ NC output, with attached cable

2 metre long cabled version

Not for flush mounted applications

Static operation with LED indicator and adjustable sensitivity

Good for simple / basic applications

Tolerant to dirt

Fixed time pulse stretching

Operating temperature range of -20ºC to +60ºC

IP 65 sealing level with a polyamide housing

  • Ring Diameter  - 44.0 mm
  • Shortest detectable object length  - 9.0 mm
  • Smallest detectable object diameter  - 5.0 mm
  • Supply voltage - 10 - 30 VDC
  • Max output current - 200 mA
  • Short circuit protected
  • Internal power consumption -
  • Repeatability =
  • Switching frequency - 250 to 600 Hz
  • Fixed time Pulse stretching of 100 ms

Specifications

Colour:
Black
Weight:
0 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Inductive Ring Sensor
Sensor Connection:
Cable
Sensor Output:
NPN / NO+NC
Sensor Ring Diameter:
44 mm

Certifications

Alternate SKU Numbers

SIA44-CE.NPN.NO+NC.R | SIA44-CE-NPN-NO+NC-R | SIA44-CENPNNO+NCR | SIA44CE NPN NO+NC R | SIA44 CE NPN NO+NC R | SIA44CE NPN NO+NC R | SIA44CENPNNONCR
