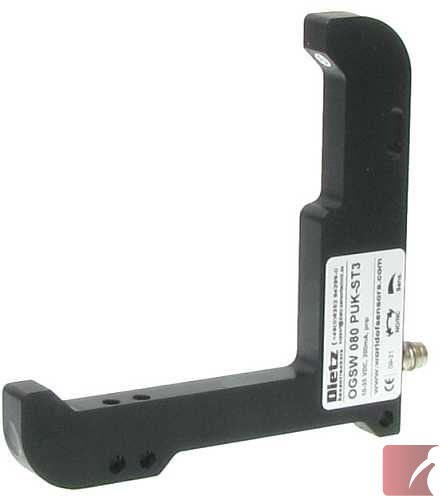

80 mm L-Shaped Fork Sensor / Angle Sensor Red Light
OGSW 080 PUK-ST3

Description

80 mm L-Shaped Fork Sensor / Angle Sensor with PNP, NO/NC switchable output

Also known as an optical Angle Sensor photoelectric light barrier

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained thru-beam sensor technology

Red light with adjustable sensitivity

Diagognal beam

Optical axis beam, can be approached from x, y and z directions

Output - PNP, NO/NC switchable

High switching frequency

Operating temperature range of -10ºC to +60ºC

IP 67 sealing level with a robust metal housing

Very easy to install. No alignment is required

Technical Data:

  • Fork opening  - 80 mm
  • Resolution - 0.7 mm
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Internal power consumption - < 45 mA
  • Voltage insulation - 500 V
  • Response / Release time - 0.2 ms
  • Switching frequency - 2.5 kHz
  • Reproducibility - 0.04 mm
  • Switching hysteresis  - <0.2 mm
  • Ambient light immunity of 50 k Klux
  • Sturdy anodized aluminum housing
  • M8 (3 wire) connector

Applications for Fork Sensors & Slot Sensors:

  • Small part detection
  • Edge detection
  • Label detection
  • Counting & verifying
  • Gear tooth detection
  • Packaging and material handling equipment
  • Numerous automation, machinery, food, pharmaceutical, paper conversion & automotive assembly uses

Specifications

Colour:
Black
Weight:
0.2 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Fork & Slot Sensors
Sensor Connection:
M8 - 3 Pole
Sensor Emitted Light:
Red Light
Sensor Fork Style:
"L" shape
Sensor Output:
PNP / NO+NC

Certifications

Alternate SKU Numbers

OGSW.080.PUK-ST3 | OGSW-080-PUK-ST3 | OGSW080PUK-ST3 | OGSW+080+PUK-ST3 | OGSW+080+PUK-ST3 | OGSW 080 PUK,ST3 | OGSW 080 PUK.ST3 | OGSW 080 PUK ST3 | OGSW 080 PUKST3 | OGSW 080 PUKST3 | OGSW080PUKST3
Direct Replacement for di-soric Number:
OGL 081 P3K-TSSL
