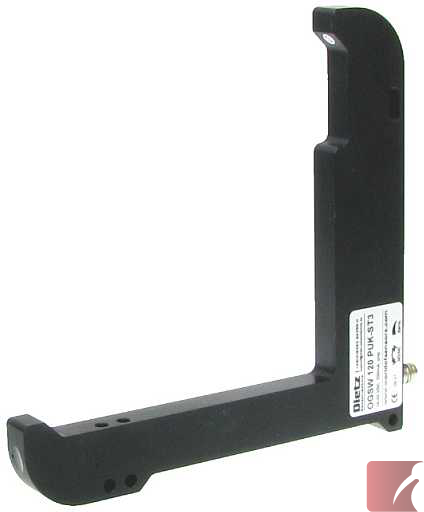

120 mm L-Shaped Fork Sensor / Angle Sensor with PNP, NO/NC switchable output, high power

Also known as an optical Angle Sensor photoelectric light barrier

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained thru-beam sensor technology

Infrared light with adjustable sensitivity

High performance, high power beam for dirty environment applications

Diagognal beam

Optical axis beam, can be approached from x, y and z directions

Output - PNP, NO/NC switchable

High switching frequency

Operating temperature range of -10ºC to +60ºC

IP 67 sealing level with a robust metal housing

Very easy to install. No alignment is required

Technical Data:

• Fork opening  - 120 mm
• Resolution - 2.0 mm
• Supply voltage - 10 - 35 VDC
• Max output current - 200 mA
• Short circuit and polarity protected
• Internal power consumption - < 45 mA
• Voltage insulation - 500 V
• Response / Release time - 0.2 ms
• Switching frequency - 2.5 kHz
• Reproducibility - 0.04 mm
• Switching hysteresis  - <0.2 mm
• Ambient light immunity of 50 k Klux
• Sturdy anodized aluminum housing
• M8 (3 wire) connector

Applications for Fork Sensors & Slot Sensors:

• Small part detection
• Edge detection
• Label detection
• Counting & verifying
• Gear tooth detection
• Packaging and material handling equipment
• Numerous automation, machinery, food, pharmaceutical, paper conversion & automotive assembly uses
