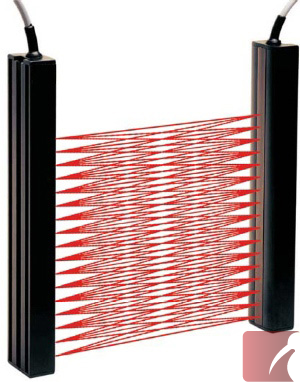

Light Curtain 100mm Active Height Digital PNP - NO output
LGTR 100 PSK-ST4
Buy This Product Online Now!

Description

100 mm ( 4") Active Height Light Curtain Sensor with digital PNP / NO output

  • Easy to install and align
  • Quick hook-up wiring with M12 (4 wire) connector and attached 1.5 metre ( 5 foot) cable
  • For position sensing, process and automation use ONLY. Do not use as a safety sensor.

Overview:

Infrared LED light with adjustable sensitivity

Output - PNP, NO (normally open)

Operating temperature range of -10ºC to +50ºC

IP 51 sealing level in a robust metal housing

Technical Data: (+20ºC at 24 VDC)

  • Curtain active height  - 100 mm ( 4 inches)
  • Curtain active width -  ranges from 0.2 to 6 metres
  • 72 scanning and 9 direct light beams
  • Resolution - 6.0 mm detectable object size
  • Response time - 20 ms max.
  • Max output current - 100 mA
  • Ambient light immunity of 40 k Klux
  • Sturdy anodized aluminum housing - dims 34 x 20 x 209 mm
  • M12 (4 wire) connector

Power & Connection:

  • Supply voltage - 10 - 30 VDC
  • Power consumption of 1.5 W
  • Short circuit and polarity protected
  • Attached 1.5 metre long lead wire with molded M12 (4 wire) connector

Applications for Light Curtains with Digital output:

  • Non-contact presence detection
  • Counting & verifying
  • Packaging and material handling equipment
  • Numerous automation, machinery, food, pharmaceutical, paper conversion & automotive assembly uses

WARNING: This product is not to be used as a safety light curtain!



Specifications

Colour:
Black
Weight:
0.5 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Light Curtains
Sensor Output:
PNP / NO
