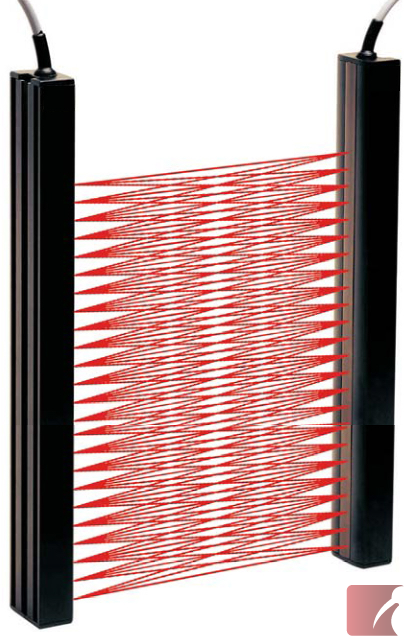

300 mm Light Curtain Sensor with digital output

Overview:

Infrared LED light with adjustable sensitivity

Output - PNP, NO (normally open)

Operating temperature range of -10ºC to +50ºC

IP 51 sealing level in a robust metal housing

Technical Data: (+20ºC at 24 VDC)

• Curtain active height  - 295 mm
• Curtain active width -  ranges from 0.2 to 7.5 metres
• 172 scanning and 24 direct light beams - 196 total beams
• Resolution - 8.0 mm detectable object size
• Response time - 26 ms max.

• Max output current - 100 mA

• Ambient light immunity of 40 k Klux
• Sturdy anodized aluminum housing - dims 34 x 20 x 332 mm
• M12 (4 wire) connector

Power & Connection:

• Supply voltage - 10 - 30 VDC
• Power consumption of 1.5 W
• Short circuit and polarity protected
• Attached 1.5 metre long lead wire with molded M12 (4 wire) connector

Applications for Light Curtains with Digital output:

• Non-contact presence detection
• Counting & verifying

• Packaging and material handling equipment
• Numerous automation, machinery, food, pharmaceutical, paper conversion & automotive assembly uses

WARNING: This product is not to be used as a safety light curtain!
