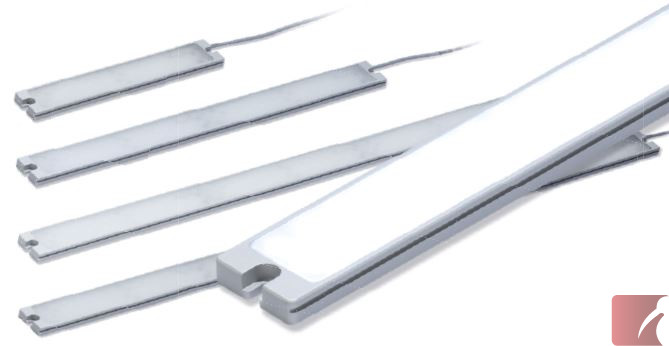

MBL Series, 222 x 32 mm Machine Lighting Surface

Product Overview:

• Illumination surface area of 222 x 32 mm
• Illumination level at 0.5 metres: 2300 lux, at 1.0 metres: 675 lux
• Luminous flux: 1591 lm
• Colour temperature: white 5000K
• Colour rendering index: 85

• Dimming and switching by PWM - input: Use with separately sold dimmer module, see here Part # MBL-DIM
• Supply voltage: 24 VDC, PWM up to 15 kHz
• Current consumption at 24 VDC: 450 mA
• Polarity protected
• Shock & vibration: 30g / 10-55 Hz, 1 mm
• Temperature rating: -25°C to + 50°C

Packaging:

• Housing is silver aluminum
• Overall dimensions: 250 x 40 mm
• Connection via attached M12, 3-pin male 300 mm cable
• IP 67 sealing level

Mounting Accessories:

• Mounting brackets, see here Part # MBL-BEF
• Mounting magnets, see here Part # MBL-MAG
• Mounting nuts for ITEM aluminum extrusions, see here Part # MBL-NUT
